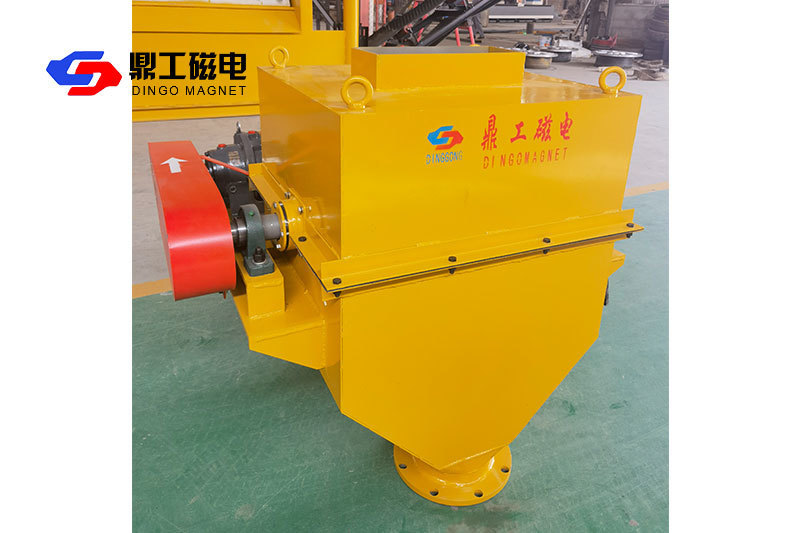

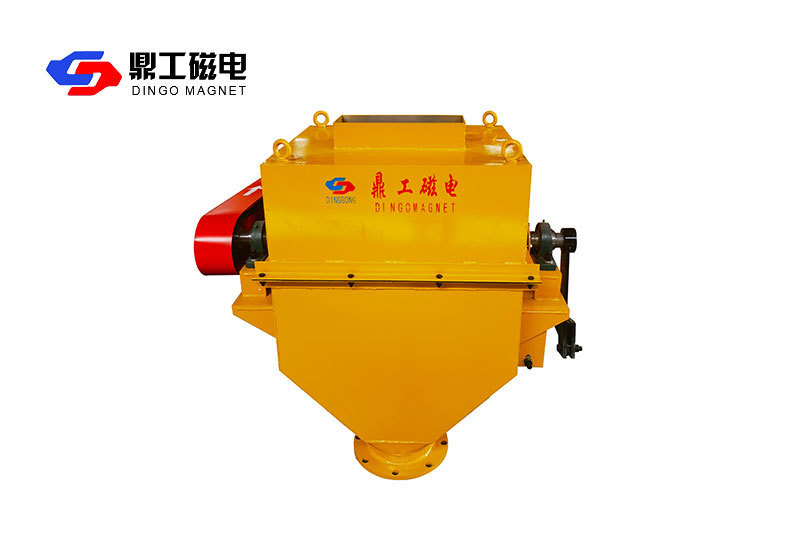

CXJ series dry powder permanent magnet magnetic separator

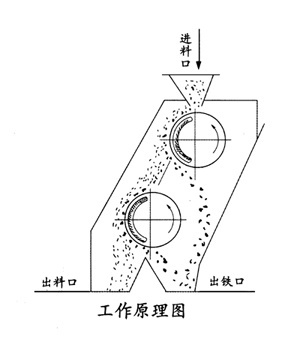

The CXJ series dry powder permanent magnet cylindrical magnetic separator (from single cylinder to four cylinders) is a magnetic separation equipment that continuously and automatically removes iron from dry powder materials. It adopts a unique magnetic circuit design and uses high-performance permanent magnet neodymium iron boron material as the magnetic source. It has strong magnetic field, high suction, high iron removal rate, maintenance free, energy saving, safe and reliable use, and can adjust and control the feeding amount, suitable for different particle requirements. The products are widely used in industries such as grinding tools, refractory materials, non-metallic mineral processing, carbon black, grain, feed, chemical raw materials, etc.

Product parameters

Project Parameters Model	External dimensions mm	Drum length mm	Drum diameter mm	Magnetic induction intensity Gs	Number of drums	Drum speed r/min	Productivity T/h	Material particle size mm	Motor power Kw	Power supply voltage~V
CXJ-40-I	550×460×660	400	300	≥3800	1	17-82	≤0.6	≤5	0.55	380
CXJ-60-I	830×710×930	600	400	≥4000	1		≤1.5	≤5	0.55
CXJ-60-II	1070×925×1240	600	320	First cylinder≥1000 Second cylinder≥4000	2		≤2	≤5	1.5
CXJ-60-III	1150×1070×1700	600	320	First cylinder≥1000 Second cylinder≥3000 Third cylinder≥4000	3		≤2.5	≤6	1.5
CXJ-80-I	1180×820×1040	800	406	≥4000	1		≤2	≤8	0.75
CXJ-80-II	1420×1220×1570	800	406	First cylinder≥1000 Second cylinder≥4500	2		≤2.5	≤8	1.5
CXJ-80-III	1770×1260×1570	800	406	First cylinder≥1000 Second cylinder≥3000 Third cylinder≥4000	3		≤3	≤8	1.75
CXJ-80-IV	1970×1280×3100	800	406	First cylinder≥1000 Second cylinder≥3000 The third and fourth cylinders≥4500	4		≤3.5	≤8	1.75
CXJ-100-I	1300×020×1240	1000	508	≥4500	1		≤2.5	≤10	1.1
CXJ-100-II	1620×1420×1770	1000	508	First cylinder≥1000 Second cylinder≥4500	2		≤4	≤10	2
CXJ-100-III	1970×1460×2309	1000	508	First cylinder≥1000 Second cylinder≥3000 Third cylinder≥4500	3		≤5.5	≤10	3
