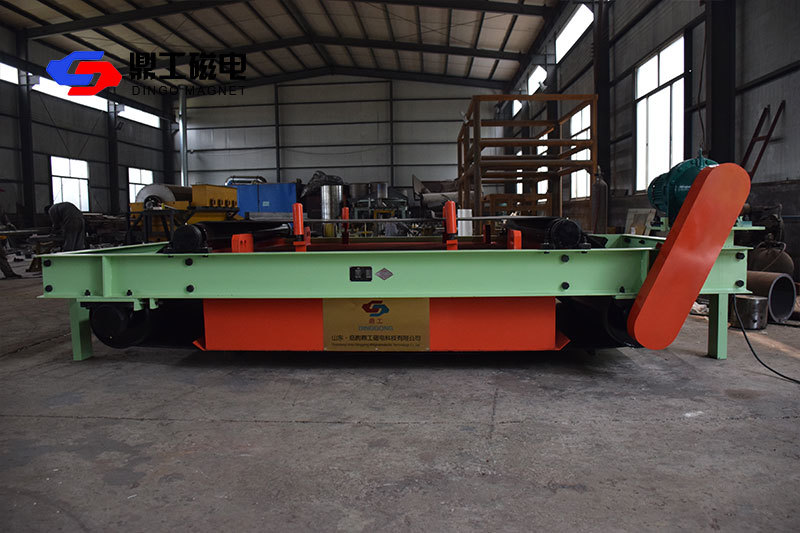

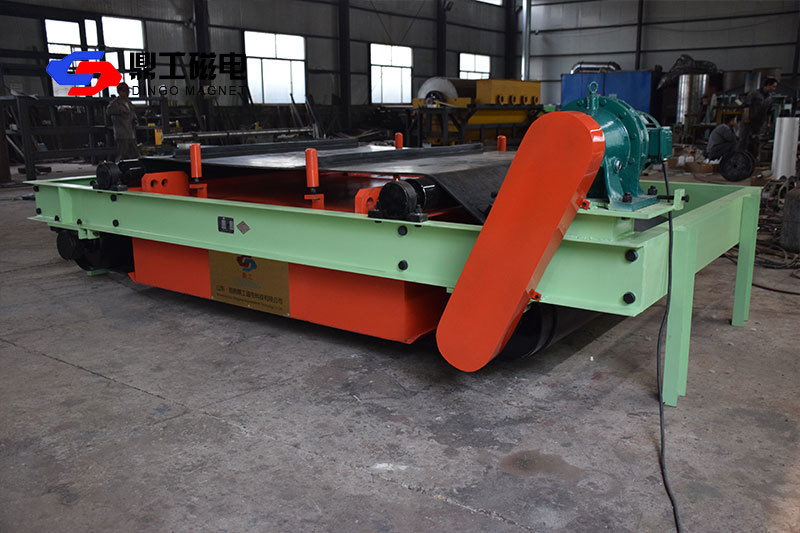

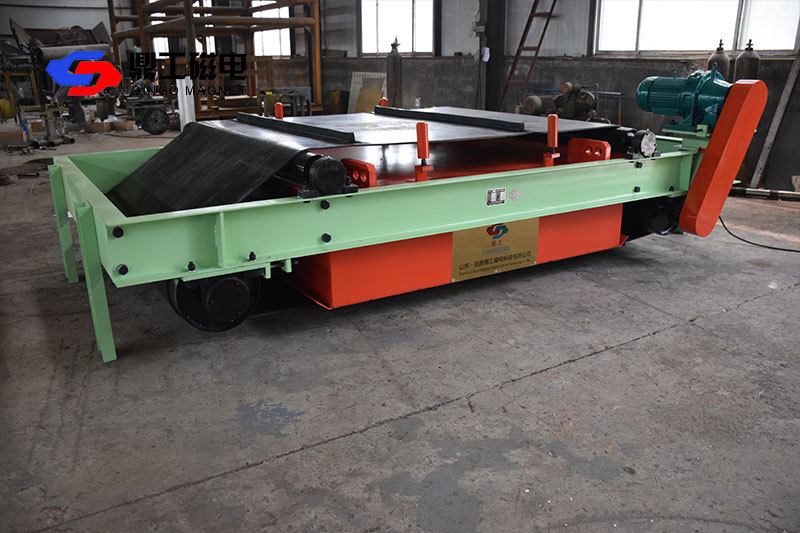

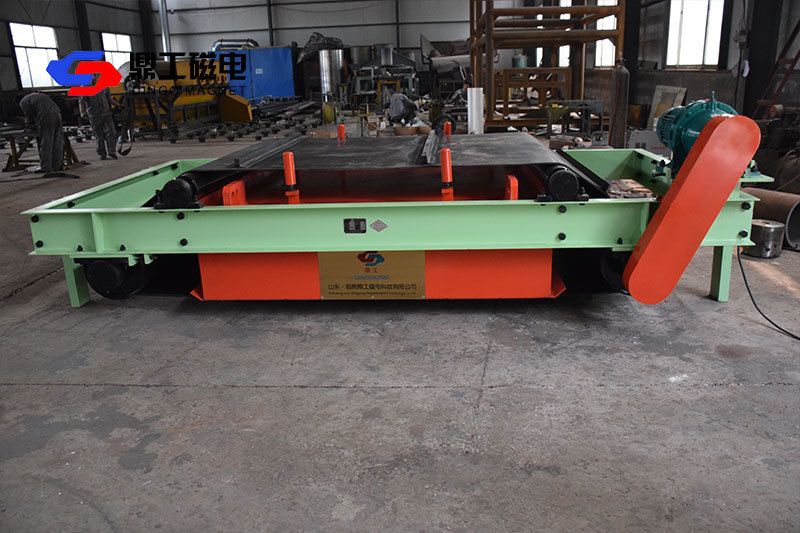

RCYD (C) series permanent magnet self dumping iron remover

The RCYD series permanent magnet self dumping iron remover is composed of high-performance permanent magnet cores, scrap iron belts, reduction motors, frames, drums, and other components, and is used in conjunction with various conveyors. Used to automatically remove 0.1-25 kilograms of ferromagnetic substances from non-magnetic materials. Its internal magnetic circuit adopts computer simulation design and a complete dual pole structure, ensuring the long-term trouble-free operation of the entire machine in harsh environments. Equipped with explosion-proof type.
Technical characteristics
1. The magnetic circuit adopts computer simulation design, with a perfect dual pole structure, high magnetic field strength, large gradient, and high suction.
2. High performance neodymium iron boron magnetic source with high magnetic energy product and difficulty in demagnetization, with demagnetization not exceeding 5% in eight years.
3. The waist drum shaped drum structure has automatic deviation correction function, fully sealed bearing seat, good sealing performance, and can adapt to various harsh environments.
4. The belt automatically unloads iron, ensuring long-term trouble-free continuous operation.
5. The control part can be interlocked with the belt conveyor to achieve on-site manual control and centralized control.
The RCYD series suspension self dumping permanent magnet iron remover is an automatic iron unloading type iron remover, which adds devices such as a reducer, iron unloading belt, drum, and main frame to the manual permanent magnet iron remover. During work, the ferromagnetic substances continuously adsorbed on the iron remover will automatically run out through the rotation of the iron unloading belt, achieving the goal of automatic iron unloading. This model has a wide range of applications, energy conservation, convenient maintenance, and extremely low failure rate. Stable and reliable operation in extremely harsh environments, this machine is used in conjunction with various belt conveyors and vibration conveyors, and is widely used in industries such as cement, thermal power generation, metallurgy, mining, chemical, glass, papermaking, coal, etc.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≤ mT	Material thickness ≤ mm	Drive power kg	Adaptive belt speed ≤ m/s	Working system	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≤ mT	Material thickness ≤ mm	Drive power kg	Adaptive belt speed ≤ m/s	Working system	Weight kg	A	B	C	D	E
RCYD(C)-5	500	150	60	80	1.5	2.5	Continuation	750	1900	710	935	950	735
RCYD(C)-6	600	175	60	120	1.5			920	2050	710	1020	1050	753
RCYD(C)-6.5	650	200	70	150	1.5			1200	2050	728	1020	1200	888
RCYD(C)-8	800	250	70	200	2.2			1400	2250	750	1300	1350	1090
RCYD(C)-10	1000	300	70	250	3.0			2120	2650	889	1550	1450	1335
RCYD(C)-12	1200	350	70	300	4.0			3350	2860	1010	1720	1550	1515
RCYD(C)-14	1400	400	70	350	4.0			4450	3225	1050	1980	1800	1755
RCYD(C)-16	1600	450	70	400	5.5			6200	3350	1180	2160	1950	1850
RCYD(C)-18	1800	500	72	450	5.5			8100	3580	1210	2450	2200	2130
RCYD(C)-20	2000	550	72	500	7.5			9700	3800	1300	2700	2400	2410

RCYD(C)-Tseries super permanent magnetic self unloading iron debris removing device

Types\Parameters\Items		System Diagram mm	Main Specifications mm	Adaptive belt speed ≤m/s	Magnetic intensity ≈mT	Driving power Kw	Dimensions mm			Suspending size mm	Weigh
Types\Parameters\Items		System Diagram mm	Main Specifications mm	Adaptive belt speed ≤m/s	Magnetic intensity ≈mT	Driving power Kw	A	B	C	Suspending size mm	Weigh
RCYD(C)-6.5	T1	650	200	5.8	90	2.2	2100	780	1030	1200*890	1280
	T2				120	2.2	2100	780	1030	1200*890	1450
	T3				150	2.2	2250	780	1030	1300*1088	1720
RCYD(C)-8	T1	800	250		90	2.2	2360	890	1220	1300*1090	1850
	T2				120	2.2	2360	890	1220	1300*1090	2200
	T3				150	3.0	2450	890	1220	1300*1090	2780
RCYD(C)-10	T1	1000	300		90	3.0	2590	1030	1430	1400*1335	2270
	T2				120	3.0	2650	1030	1430	1400*1335	2710
	T3				150	4.0	2780	1030	1430	1400*1335	3580
RCYD(C)-12	T1	1200	350		90	4.0	2800	1060	1660	1600*1515	3020
	T2				120	4.0	2950	1060	1660	1600*1515	3980
	T3				120	5.5	3020	1060	1660	1600*1515	4800
RCYD(C)-14	T1	1400	400		90	4.0	2800	960	1750	1900*1750	4650
	T2				120	5.5	3050	1200	1920	1900*1750	5380
	T3					5.5	3300	1200	1920	1900*1750	7500
RCYD(C)-16	T1	1600	450		90	5.5	3230	1220	2270	2000*1940	5800
	T2				120	5.5	3410	1220	2270	2000*1940	7650
	T3				150	7.5	3560	1220	2270	2000*1940	9980
RCYD(C)-18	T1	1800	500		90	7.5	3800	1250	2550	2200*2180	7900
	T2				120	7.5	4020	1250	2550	2200*2180	9800
	T3				150	11.0	4050	1295	2550	2200*2180	13500
RCYD(C)-20	T1	2000	550		90	7.5	4200	1150	2600	2400*2450	10800
	T2				120	11.0	4200	1200	2600	2400*2450	13500
	T3				150	11.0	4480	1250	2700	2400*2450	18640
RCYD(C)-22	T1	2200	600		90	11.0	4810	1250	2700	2700*2670	13980
	T2				120	11.0	4810	1250	2700	2700*2670	18350
	T3				150	15.0	4810	1350	2700	2700*2670	25080
RCYD(C)-24	T1	2400	650		90	15.0	5280	1250	3200	3200*2850	18760
	T2				120	15.0	5280	1350	3200	3200*2850	23870
	T3				150	15.0	5280	1350	3200	3200*2850	29960
