DSQC series wet strong magnetic plate magnetic sorting machine
Category：
Tel：
Email：

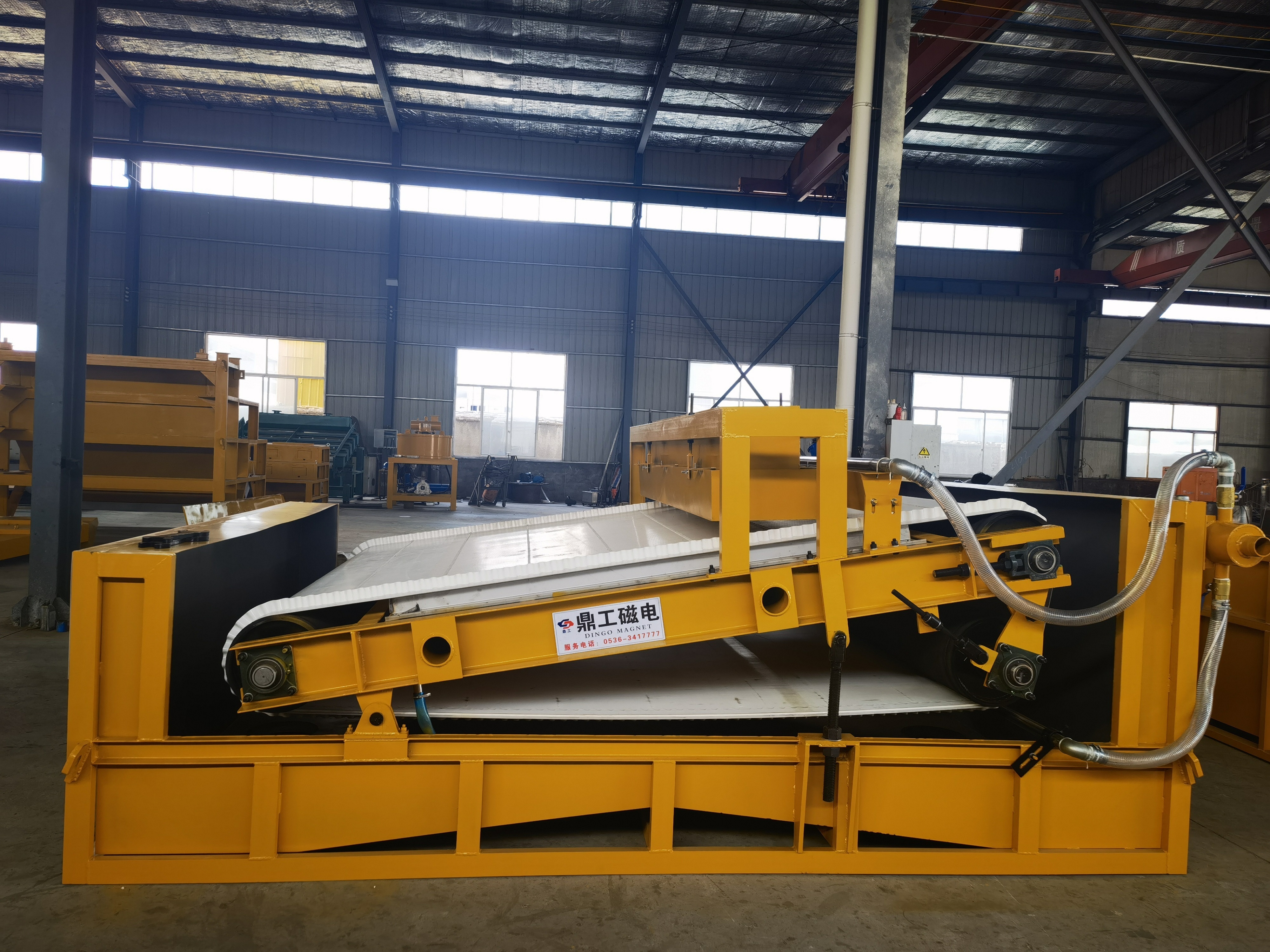

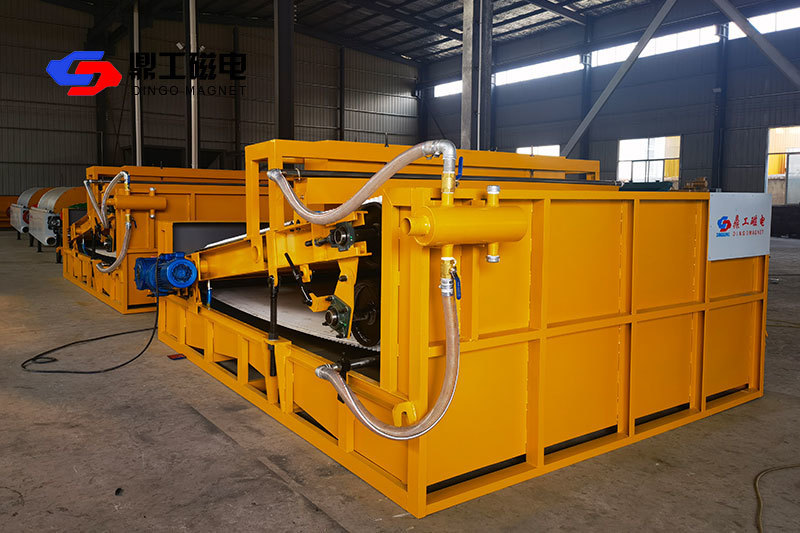

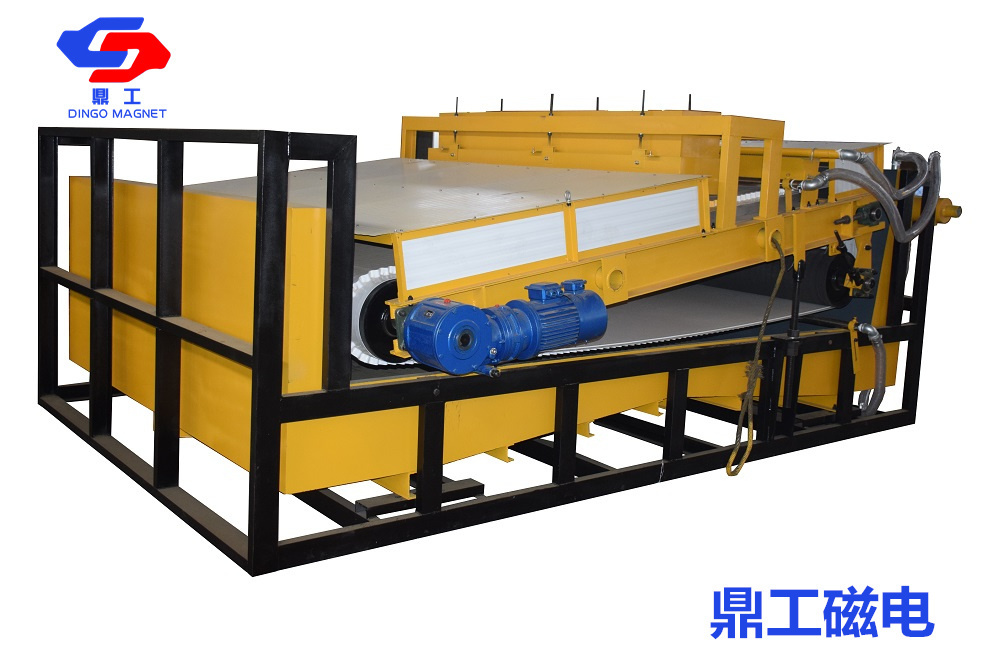

DSQC series wet strong magnetic plate magnetic sorting machine
The DSQC wet strong magnetic plate magnetic separator is a brand new magnetic separation equipment developed by our company, which summarizes the advantages and disadvantages of traditional magnetic separation equipment, breaks through conventional design concepts, integrates magnetic separation and gravity separation, and has the advantages of high magnetic field strength, significant iron reduction effect, large processing capacity, energy saving, water-saving, and simple use.
Applicable scope
Iron removal and purification of non-metallic ores in wet processing, especially for non-metallic ores such as quartz sand and potassium albite. In addition, it has good separation effect for weak magnetic minerals such as hematite, limonite, specularite, siderite, manganese ore, tantalum slime, etc. Suitable for purifying various minerals.
Outstanding advantages of flat wet strong magnetic separator
1. High magnetic field strength: The magnetic system is made of high-performance rare earth neodymium iron boron material, with a wide gathering surface, a large number of magnetic poles, high magnetic induction strength, large magnetic field gradient, and a local magnetic field of up to 17000Gs.
2. Large magnetic plate area: Currently, the width direction can reach 2.8 meters and the length direction can reach 3 meters.
3. Uniform fabric: Double layer perforated plate fabric is used, stable and uniform, with a thin material layer.
4. Clean iron unloading: Various specialized iron unloading belts have been customized and developed for users to choose from, using high-strength and high-quality composite materials, with a long service life and obvious iron unloading effects.
5. Energy saving and water-saving: Only one low-power drive motor, low electrode consumption, unique controllable water supply system design, saving water resources.
Product parameters
| Model | Effective width of magnetic plate (mm) | Effective length of magnetic plate (mm) | Magnetic field strength standard configuration (Gs) | Feed concentration (%) | Water supply pressure (Mpa) | Material particle size (mm) | Processing capacity (t/h) | Motor power (kW) Main engine power (kW) |
| DSQC-0815 | 800 | 1500 | 15000 | 20-25% | ≧.02 | -3 | 8-10 | 1.1 |
| DSQC-1020 | 1000 | 2000 | 15000 | -3 | 10-15 | 1.5 | ||
| DSQC-1220 | 1200 | 2000 | 15000 | -3 | 15-20 | 2.2 | ||
| DSQC-1525 | 1500 | 2500 | 15000 | -3 | 20-35 | 2.2 | ||
| DSQC-2025 | 2000 | 2500 | 15000 | -3 | 25-30 | 3 | ||
| DSQC-2030 | 2000 | 3000 | 15000 | -3 | 25-30 | 3 | ||
| DSQC-2525 | 2500 | 2500 | 15000 | -3 | 35-40 | 4 | ||
| DSQC-2530 | 2500 | 3000 | 15000 | -3 | 35-40 | 4 | ||
| DSQC-2830 | 2800 | 3000 | 15000 | -3 | 40-45 | 4 |
