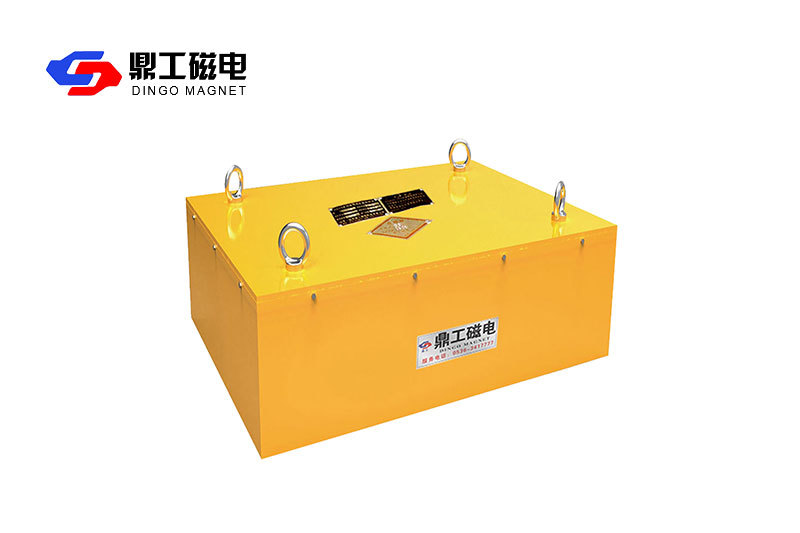

RCYB series suspended permanent magnet iron remover

Technical characteristics
Suitable for removing iron from non magnetic materials on belt conveyors, vibrating feeders, and discharge chutes.
Technical characteristics
A composite magnetic system is composed of permanent magnets such as neodymium iron boron with high coercivity and high remanence. The magnetic field is strong and the suction is large.
Simple installation, convenient use, reliable operation, and maintenance free.
All technical indicators comply with JB/T8711-2006.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Suspension height h ≤ mm	Adaptive belt speed ≤ m/s	Material thickness ≤ mm	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Suspension height h ≤ mm	Adaptive belt speed ≤ m/s	Material thickness ≤ mm	Weight kg	L	D	H
RCYB-4	400	125	4.5	60	115	400	300	230
RCYB-4-1	400	75		30	65	400	250	140
RCYB-5	500	150		90	206	500	350	260
RCYB-5-1	500	100		50	96	500	260	160
RCYB-6	600	175		120	295	600	450	280
RCYB-6-1	600	130		60	158	600	350	180
RCYB-6.5	650	200		150	450	650	600	300
RCYB-8	800	250		200	680	950	950	380
RCYB-8-1	800	200		150	550	800	600	300
RCYB-10	1000	300		250	1180	1100	1000	380
RCYB-12	1200	350		300	1670	1300	1340	420
RCYB-14	1400	400		350	2350	1500	1500	420
RCYB-16	1600	450		400	2850	1750	1750	460
