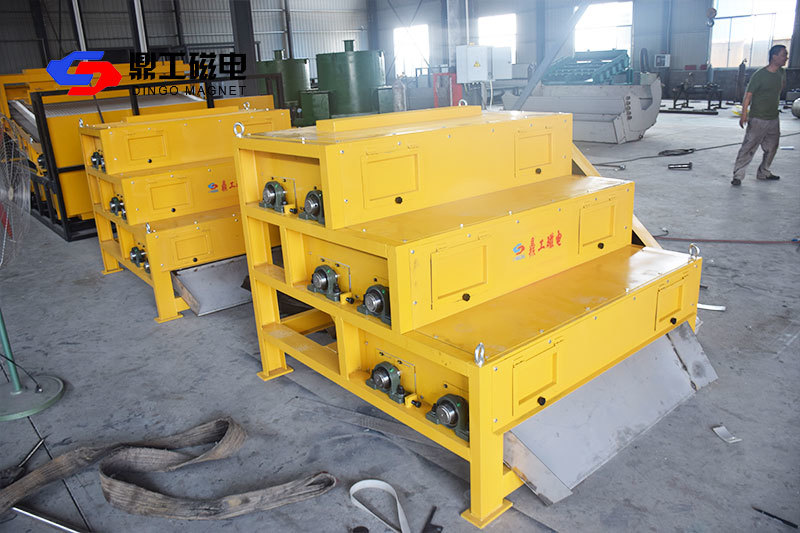

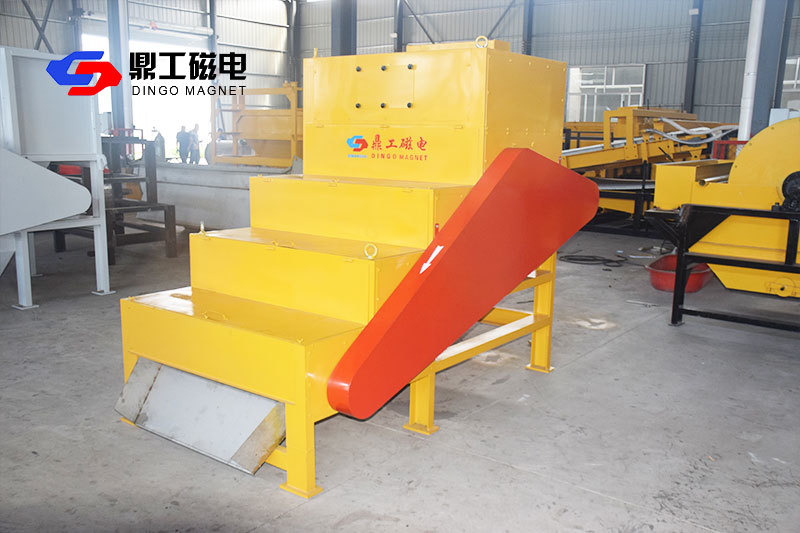

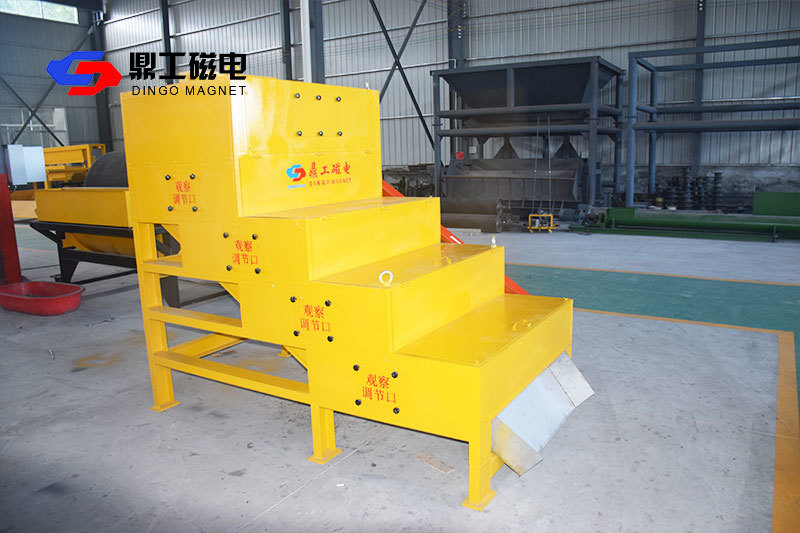

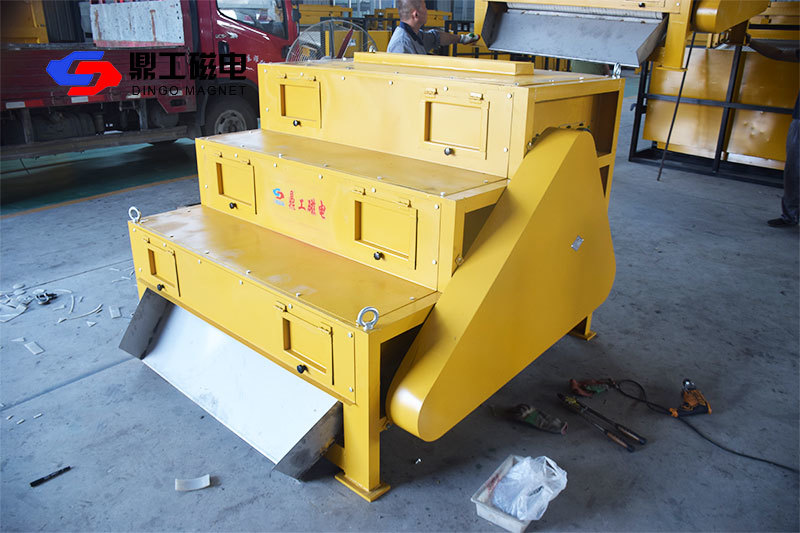

CFJ permanent magnet roller magnetic separator

Applicable scope
The weak magnetic oxide is removed from the fine particles or coarse powdery materials, which are used for the purification of non-metallic mineral industry materials such as chemical industry, refractory, food, glass, medicine, ceramics, and dry pre concentration of hematite and limonite, manganese ore, and dry beneficiation.
Technical characteristics
1. Concentrated magnetic composite magnetic system, combined with dual magnetic poles, with high magnetic field strength and large gradient.
2. Soft magnetic materials conduct magnetism, minimizing magnetic field loss and greatly improving magnetic force.
3. Equipped with a controllable feeding system.
4. Automatically clean the adsorbed weak magnetic oxides, ensuring long-term trouble-free operation.
5. The surface magnetic induction intensity of the magnetic roller can reach 15000-2000GS.
6. It can be designed as a single or double layer according to user requirements, making disassembly and assembly convenient.
7. The speed of the magnetic roller can be adjusted by frequency conversion.
Product parameters

Model/Parameter/Project	Magnetic roller length mm	Magnetic roller field strength Gs	Belt thickness mm	Material particle size（μm）	According to different material particle sizes and iron removal requirements, the processing capacity (t/h)	Drive motor power (kW)
CFJ-3-Ⅰ	300	15000-20000	0.5-3	125-1000	0.4～1	0.55
CLJ-3-Ⅱ	300	15000-20000	0.5-3	125-1000	0.4～1	1.1
CFJ-5-Ⅰ	500	15000-20000	0.5-3	125-1000	0.8～2	0.55
CFJ-5-Ⅱ	500	15000-20000	0.5-3	125-1000	0.8～2	1.1
CFJ-8-Ⅰ	800	15000-20000	0.5-3	125-1000	1.2～3.6	0.75
CFJ-8-Ⅱ	800	15000-20000	0.5-3	125-1000	1.2～3.6	1.5
CFJ-10-Ⅰ	1000	15000-20000	0.5-3	125-1000	3～7.2	1.1
CFJ-10-Ⅱ	1000	15000-20000	0.5-3	125-1000	3～7.2	2.2
CFJ-12-Ⅰ	1200	15000-20000	0.5-3	125-1000	4.8～9.6	0.75
CFJ-12-Ⅱ	1200	15000-20000	0.5-3	125-1000	4.8～9.6	1.1
CFJ-12-Ⅲ	1200	15000-20000	0.5-3	125-1000	4.8～9.6	1.5
CFJ-15-Ⅰ	1500	15000-20000	0.5-3	125-1000	7～10	0.75
CFJ-15-Ⅱ	1500	15000-20000	0.5-3	125-1000	7～10	1.5
CFJ-15-Ⅳ	1500	15000-20000	0.5-3	125-1000	7～10	3
