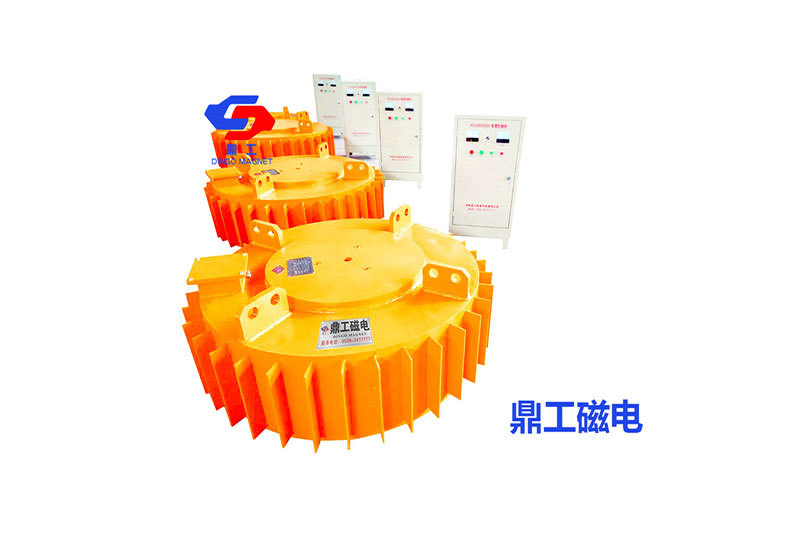

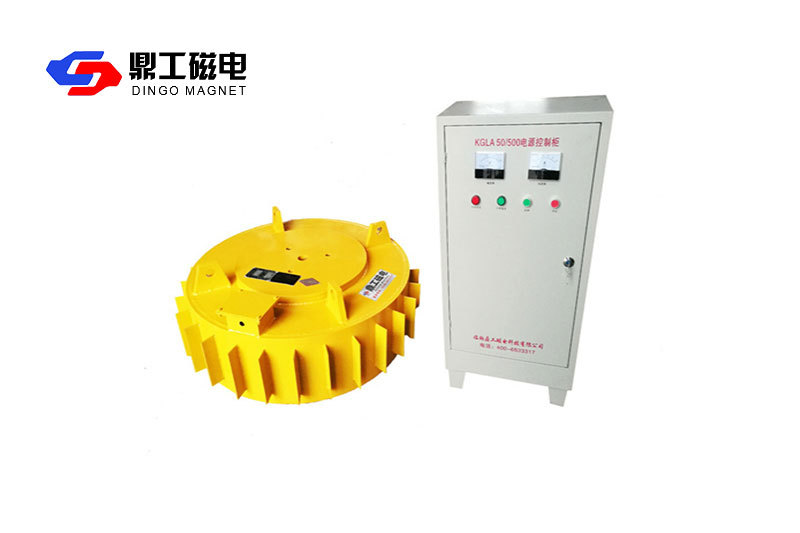

RCDB series dry electromagnetic iron remover

It applies to iron debris removing for any materials before entering into conveyor belts or crushing machines under any severe environment.

Technical characteristics

Its magnetic circuits are designed through computer aid simulating method. The design makes the device has unique magnetic field, deep magnetic matrix permeability and strong magnetic field.It uses special electrical resins pouring method as the sealing closure inside the machine. Self cooling complete sealing structure makes the machine with features of dust proof, rain proof and corrosion resistance.The device uses waving wing shape heat sinks to increase the heat radiating area, which effectively makes the temperature rising under control. It can effectively absorb 0.1-35 kilograms of ferromagnetic substances mixed in non-magnetic materials.

Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	Dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	A	B	φD	φd
RCDB-5	500	150	60	90	1	4.5	430	1900	940	610	450
RCDB-6	600	175	60	120	1.6		580	2000	1020	740	500
RCDB-6.5	650	200	70	150	2		680	2050	1190	816	640
RCDB-8	800	250	70	200	3.6		950	2200	1270	960	780
RCDB-10	1000	300	70	250	5		1520	2750	1635	1200	920
RCDB-12	1200	350	70	300	6.8		2250	3000	1800	1400	1000
RCDB-14	1400	400	70	350	97		2950	3500	2050	1650	1400
RCDB-16	1600	450	70	400	13		4800	3900	2450	1900	1650
RCDB-18	1800	500	70	450	18		6900	4400	2850	2150	1800
