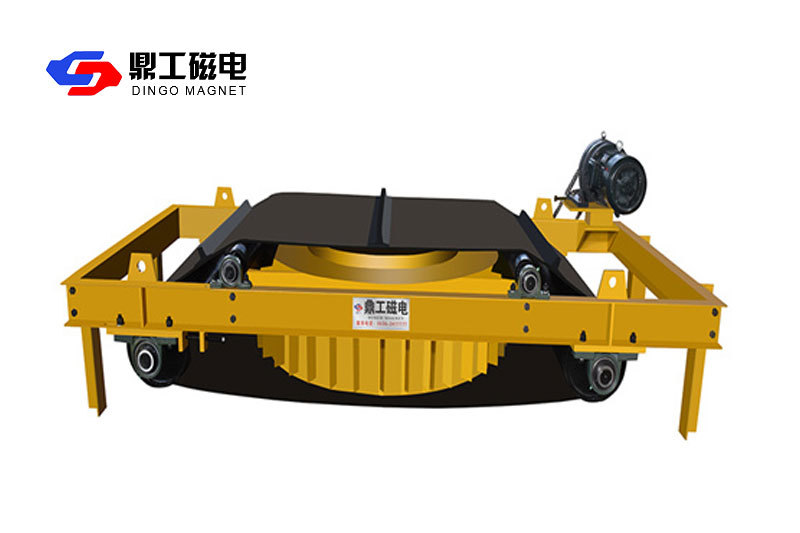

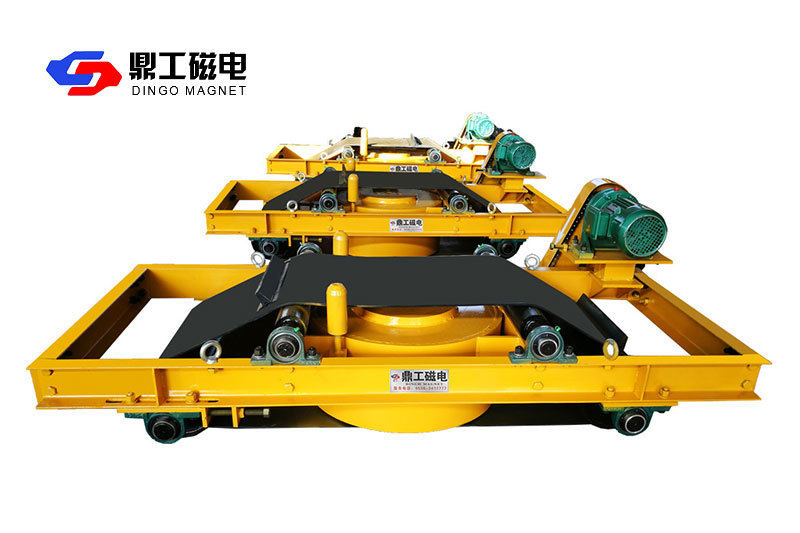

RCDD series dry self dumping electromagnetic iron remover

Applicable scope：

It applies to iron debris removing for any materials before entering into conveyor belts or crushing machines under any severe environment.

Technical characteristics：

1.Its magnetic circuits are designed through computer aid simulating method. The design makes the device has unique magnetic field, deep magnetic matrix permeability and strong magnetic field.

2.It uses special electrical resins pouring method as the sealing closure inside the machine. Self cooling complete sealing structure makes the machine with features of dust proof, rain proof, salt mist proof and corrosion resistance.

3.It features the function of self iron debris removing and easy installation and maintenance. Its cylinder has drum-shape designed structure and its belt has self deviation adjusting function. Special made all sealed bearing housing make long term trouble free running.

4.It has good compatibility of working online with other equipments. The product is equipped with a complete set of rectifying function. The device can be controlled by manual method or by centralized method. The above mentioned functions and features meet different requirements in various occasions.
5.It can effectively absorb 0.1-50 kilograms of ferromagnetic substances mixed in non-magnetic materials.
Product parameters：

Project/Parameter/Model	Adaptive belt width mm	Rated suspending height h mm	Magnetic field intensity ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Drive power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive belt width mm	Rated suspending height h mm	Magnetic field intensity ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Drive power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	A	B	C	D	E
RCDD-5	500	150	60	100	1	1.5	4.5	950	2020	1040	775	853	1000
RCDD-6	600	175	60	130	1.8	1.5		1380	2140	1100	800	910	1100
RCDD-6.5	650	200	70	150	2	2.2		1490	2275	1190	820	988	1250
RCDD-8	800	250	70	200	3.6	2.2		1770	2540	1350	865	1133	1300
RCDD-10	1000	300	70	250	5	3		2380	2750	1635	940	1420	1500
RCDD-12	1200	350	70	300	6.8	3		3170	2950	1750	950	1518	1700
RCDD-14	1400	400	70	350	9	4		4800	3150	2050	950	1755	1900
RCDD-16	1600	450	70	400	13	5.5		6300	3750	2450	1180	1980	2050
RCDD-18	1800	500	70	450	18	7.5		7800	3950	2450	1290	2200	2200

RCDD-T系列超强干式自卸式电磁除铁器技术参数

Types\Parameters\Items		Cooling way	Adaptive belt width mm	Rated suspending height mm	Magnetic field intensity mT	Exciting power kw	Driving power ≤kw	Adaptive belt speed ≤m/s	Dimensions mm *φDB**	Weight kg
RCDD-6.5	T1	Dry self cooling	650	200	90	4	2.2	5.8	23201190820	1800
	T2				120	6	2.2		25401350860	2250
	T3				150	10	2.2		27501440860	2950
RCDD-8	T1		800	250	90	5.3	2.2		25201350880	2320
	T2				120	7.5	3		27501630880	2560
	T3				150	11.5	3		28001650920	3450
RCDD-10	T1		1000	300	90	7.1	3		27501650920	3100
	T2				120	9	3		29201750950	3700
	T3				150	14	4		30001800960	4600
RCDD-12	T1		1200	350	90	9	4		29501750950	4320
	T2				120	13.5	4		31502050950	5320
	T3				150	16	5.5		34502050950	6100
RCDD-14	T1		1400	400	90	11.5	4		32002100960	6390
	T2				120	18	5.5		375022501180	7400
	T3				150	25	5.5		390022501180	8200
RCDD-16	T1		1600	450	90	18	5.5		375022501150	7150
	T2				120	25	5.5		410024501200	8700
	T3				150	40	7.5		410024501260	11750
RCDD-18	T1		1800	500	90	25	7.5		410024501230	9550
	T2				120	32	7.5		435026001280	11540
	T3				150	45	11		435026501280	15000
RCDD-20	T1		2000	550	90	30	7.5		460026501280	12460
	T2				120	40	11		495028501300	14700
	T3				150	50	11		495028501350	18690
