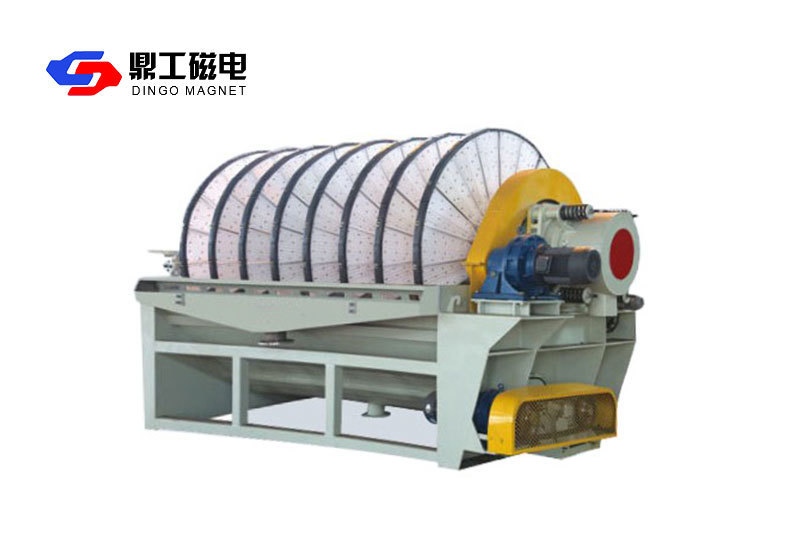

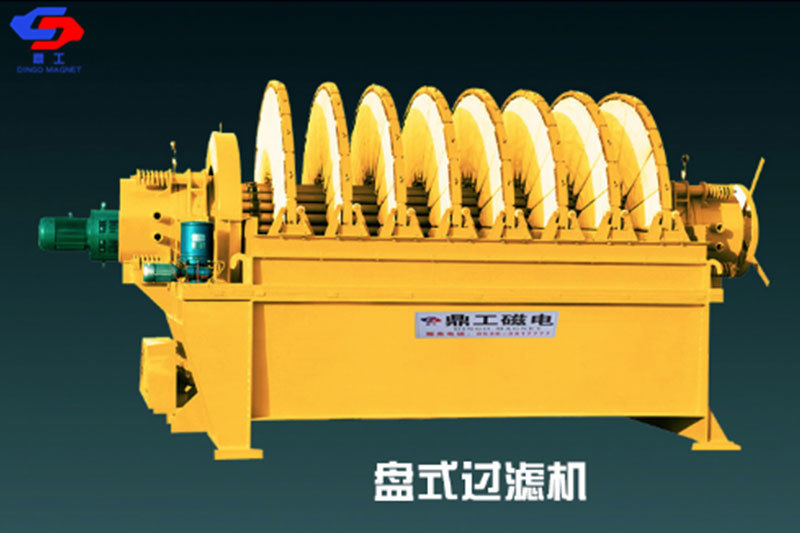

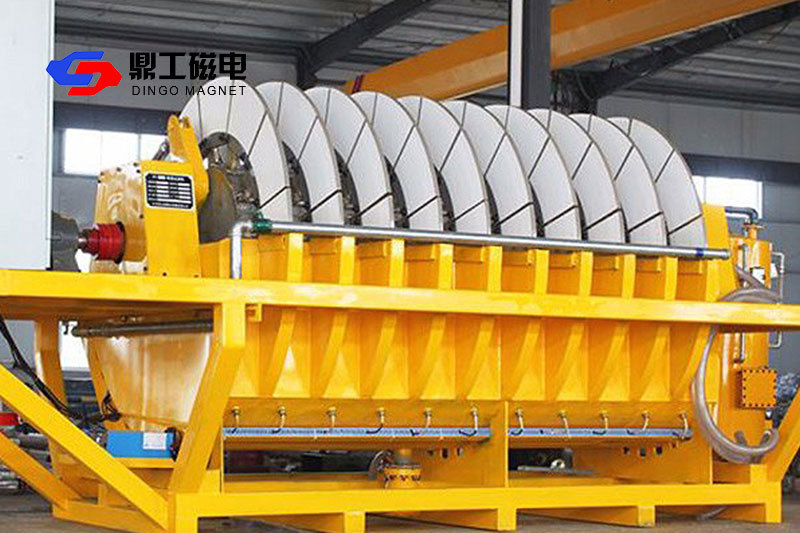

GP series disc vacuum filter

The PGT series metal mining disc vacuum filter fully draws on the advantages of similar foreign products, targeting the high density, fast settling
Due to the strong impact force of solid particles on the filtrate pipe, the overall performance and reliability of various components have been optimized and designed to ensure the metal minerals
Quality achieves excellent dehydration indicators in solid-liquid separation. Through successful practical application by users, it has been proven that its main technical indicators and performance have reached the forefront at home and abroad
Enter the product level.
Applicable scope
Disc vacuum filter is a device that uses vacuum as the filtering power and is used for solid-liquid separation of slurry. PGT vacuum filter is suitable for iron
The dewatering operation of concentrate and non-ferrous metal concentrate is also suitable for dewatering operations in fields such as coal washing plants, non-metallic mines, chemical engineering, and environmental protection.
Main features
1. The fan shaped filter plate has uniform distribution of dewatering holes, reasonable porosity, large rib size, and is made of high-strength engineering plastic, which increases its service life by 1%-
1.5x.
2. The filtration area of the filtrate tube is large, and the area of the distribution head and abdominal cavity is large, which improves the suction rate and filtrate discharge effect.
3. Wear-resistant nylon monofilament or double-layer multifilament filter cloth increases dehydration rate and is not easy to block, extending service life.
4. Multi point dry oil pump centralized automatic lubrication.
5. The automatic cleaning device of the filter cloth maintains its good dehydration effect.
6. Horizontal forced variable speed mixing, with rubber and graphite packing at the shaft end and triple sealing with water pressure difference to ensure no slurry leakage.
7. The main transmission is continuously variable, adjusted according to the concentration and flow rate of the material (AC variable speed motor or frequency converter), in order to achieve the ideal working effect.
8. Each plate is composed of 20 filter fan plates, which strengthen the control of the filtration process and ensure uniform cake thickness.
9. The friction plate is made of special wear-resistant material boron cast iron, which combines rigidity and flexibility, has good sealing effect, and long service life.
10. The filtrate pipe is made of high-strength wear-resistant ceramic composite steel pipe, which increases its service life by more than 10 times.
11. Remove the upper and lower flanges from the interface between the filtrate pipe and the filter fan, and use a mold for positioning and direct welding to reduce the potential leakage points by 90%.
Product parameters

Filter disc diameter (mm)		2100							3100
Filter area(m²)		10	15	20	25	30	35	40	48	60	72	84	96
Number of filter discs (pieces)		2	3	4	5	6	7	8	4	5	6	7	8
Number of filter fans per plate (nos.)		20
Spindle motor power(KW)		2.2		3		4		5.5			7.5
Mixing motor power(KW)		3		4		5.5		7.5			11
Discharging method		Reverse wind
Machine weight		10.4	11.0 11.6		12.2　12.8		13.4　14.0		18	21	24	27	30
Overall dimensions	Length (mm)	2535	2920 3315		3705 4095		4485 4875		4175	4675	5175	5675	6175
	Width (mm)	2480							4280
	Height (mm)	2690							3740
Processing capacity (t/h. m) ²）		0.6-0.85
