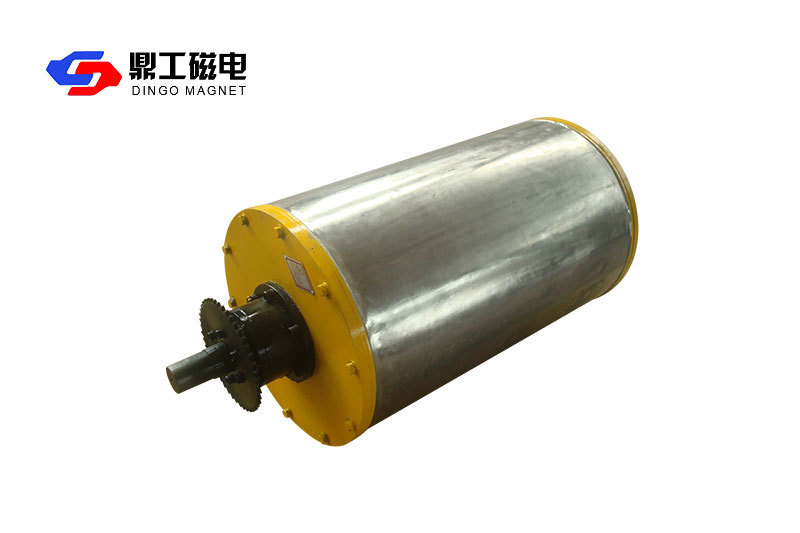

CTZ series permanent magnet drum

The CTZ series permanent magnet rollers (divided into half magnetic and full magnetic structures) are mostly used for purification treatment of powdery, granular, and small materials, or for the recycling and utilization of iron. They play a reliable protective role in preventing damage and wear of crushers, grinders, and presses. It is easy to install, has strong suction, no energy consumption, continuously operates, and is designed according to the TD-75 belt conveyor standard. It can meet the user's requirements for high field strength and deep iron removal. Widely used in industries such as metallurgy, ceramics, abrasive tools, steel sand, non-metallic minerals, refractory materials, mining, food, chemical, glass, building materials, etc.
Product parameters

Project/Parameter/Model	Cylinder diameter Dmm	Adaptive bandwidth Bmm	Cylinder length mm	Magnetic induction intensity of cylinder surface ≈ Gs	Cylinder speed r/min	Powder material iron removal ≈ T/h	Removal of iron impurities from bulk materials ≈ T/h	Weight kg	External dimensions mm
Project/Parameter/Model	Cylinder diameter Dmm	Adaptive bandwidth Bmm	Cylinder length mm	Magnetic induction intensity of cylinder surface ≈ Gs	Cylinder speed r/min	Powder material iron removal ≈ T/h	Removal of iron impurities from bulk materials ≈ T/h	Weight kg	A	L1	K	d	h	b
CTZ-32/40	320	400	500	3000	20-30	0.8	10	120	728	1010	100	50	53.5	14
CTZ-32/50	320	500	600	3000		1	15	150	850	1150	115	50	53.5	14
CTZ-40/50	400	500	600	3000		2	20	240	850	1150	115	50	60	16
CTZ-50/50	500	500	600	3000		3.5	30	360	850	1150	115	50	60	16
CTZ-32/65	320	650	750	3000		2	20	210	1000	1350	135	50	60	16
CTZ-40/65	400	650	750	3000		2.8	30	350	1000	1350	135	60	64	18
CTZ-50/65	500	650	750	3000		4.5	40	420	1000	1350	135	90	97	24
CTZ-63/65	630	650	750	3000		7	45	830	1000	1350	135	90	97	24
CTZ-40/80	400	800	950	3000		8	55	470	1300	1630	175	70	76	20
CTZ-50/80	500	800	950	3000		10	65	600	1300	1630	175	70	76	20
CTZ-63/80	630	800	950	3000		10	80	800	1300	1730	175	70	76	20
CTZ-80/80	800	800	950	4000		12	100	980	1300	1730	175	90	97	24
CTZ-63/100	630	1000	1150	3500		12	120	1200	1300	1730	175	90	97	24
CTZ-80/100	800	1000	1150	4000		115	140	1300	1500	2000	215	110	119	32
CTZ-100/120	1000	1200	1400	4000		20	180	1580	1750	2270	255	130	140	36
CTZ-125/140	1250	1400	1600	4000		30	250	1950	2000	2555	275	150	161	40
