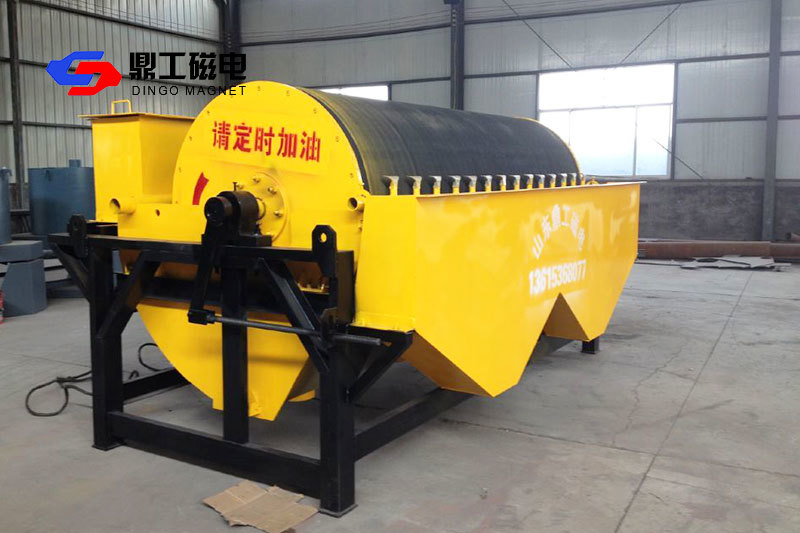

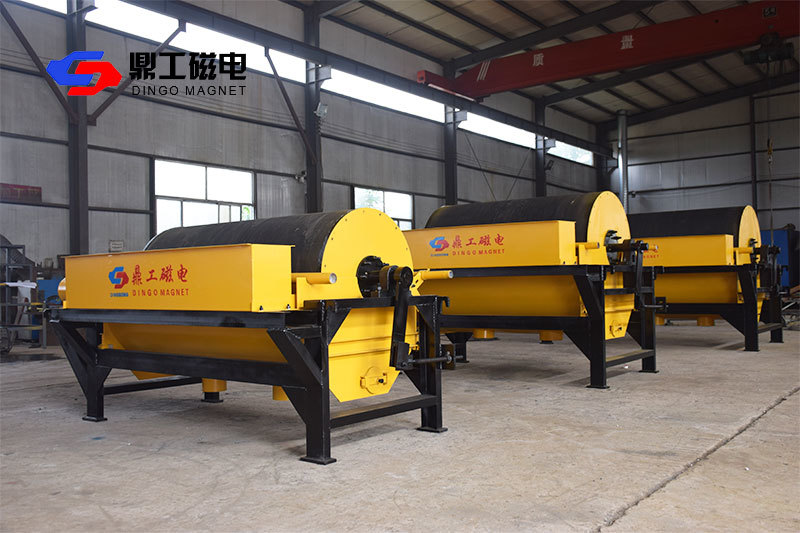

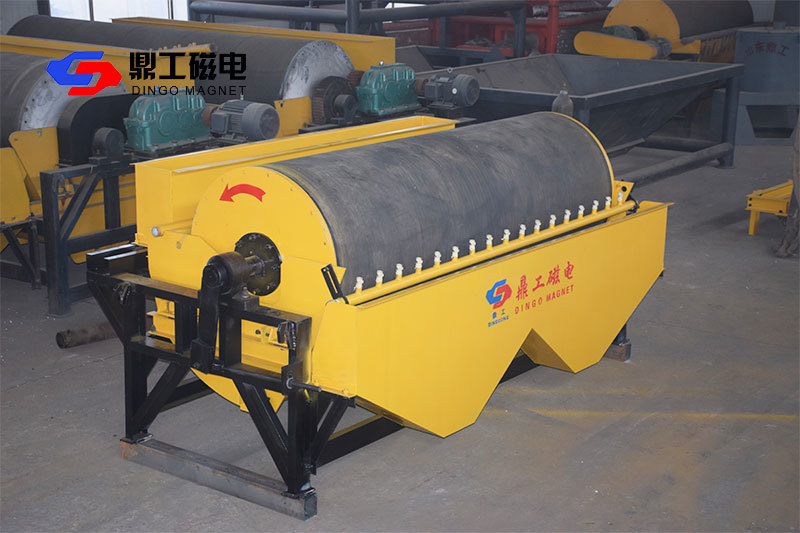

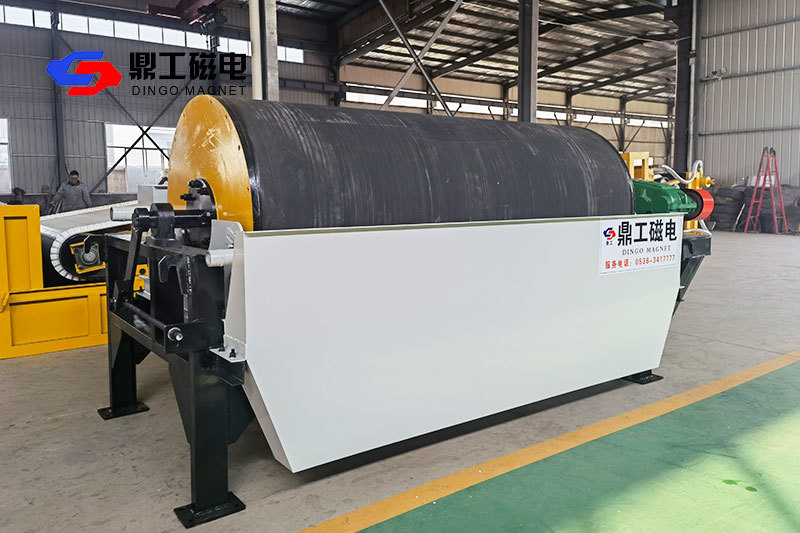

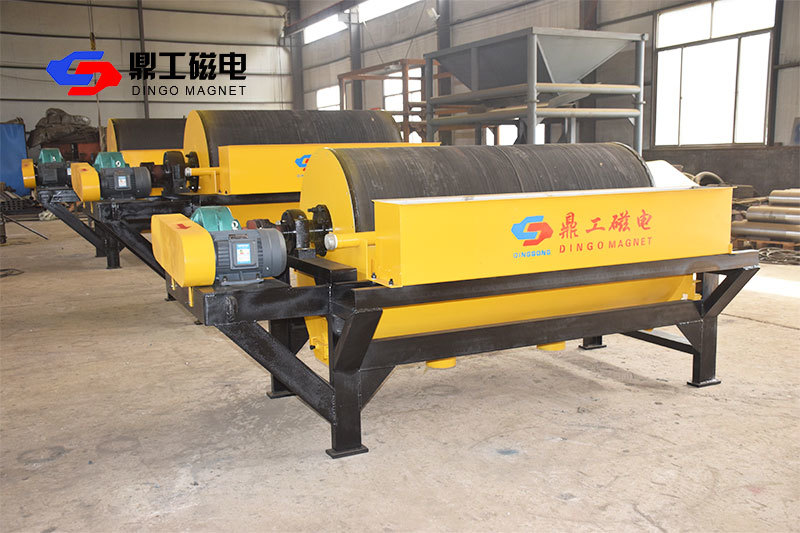

CTB CTS CTN series permanent magnet cylindrical magnetic separator

The CTS, CTN, and CTB series permanent magnet cylindrical magnetic separators have two types of magnetic fields: rotating and fixed. The fixed type is mainly suitable for wet separation of fine particles of strong magnetic substances in weak magnetic fields, or for removing strong magnetic minerals from non magnetic minerals. When the slurry flows into the magnetic field area, the strong magnetic minerals are adsorbed on the surface of the cylinder, and the weak magnetic and non magnetic minerals are sorted and eliminated, The strong magnetic minerals adsorbed on the surface of the cylinder are carried out of the magnetic field region with the rotation of the cylinder. The rotary type is suitable for dry separation of fine-grained strong (medium strong) magnetic minerals. Due to the high-speed rotation, the magnetic rolling frequency of magnetic particles is significantly higher than that of ordinary magnetic separators. This has a significant effect on breaking the magnetic agglomeration and improving the rich ore ratio. After separation, the minerals are separated into magnetic and non magnetic substances, which are discharged from their respective ore discharge ports. This machine is suitable for rough selection and selection of ores with a particle size of 0.6-6mm. The same cylinder can be equipped with three types of tank bodies, namely, downstream tank (CTS) with a particle size ≤ 6mm, upstream tank (CTN) with a particle size ≤ 0.6mm, and semi upstream tank (CTB) with a particle size ≤ 1mm.
Applicable scope
The permanent magnet cylindrical magnetic separator is suitable for wet separation of fine magnetic minerals such as iron mines or for removing mixed magnetic minerals from non magnetic minerals.
Product parameters

Model	Cylinder size (Cylinder diameter Cylinder length) mm	Magnetic surface magnetic induction intensity mT			Processing capacity		Motor power kw	Cylinder speed r/min	Total weight of the machine kg	Explain
Model	Cylinder size (Cylinder diameter Cylinder length) mm	Geometric center value of magnetic pole	Average value of scanning selection area	Maximum magnetic induction intensity	T/h	M³/h	Motor power kw	Cylinder speed r/min	Total weight of the machine kg	Explain
CTS(N、B)-46	400×600	—	130	160	1～3	5	1.1	45	600
CTS(N、B)-66	600×600	—	145	170	1～10	16	1.1	40	750	Permanent magnet
CTS(N、B)-69	600×900	—	145	170	8～5	24	1.1	40	830
CTS(N、B)-612	600×1200	—	145	170	10～20	32	2.2	40	990
CTS(N、B)-618	600×1800	—	145	170	15～30	48	2.2	40	1330
CTS(N、B)-712	750×1200	120	155	180	15～30	48	3	35	1500
CTS(N、B)-718	750×1800	120	155	180	20～45	72	3	35	2100	Permanent magnet
CTS(N、B)-918	900×1800	148	165	190	25～55	90	4	28	2900
CTS(N、B)-924	900×2400	148	165	190	35～70	110	4	28	3500
CTS(N、B)-1018	1050×1800	148	165	190	40～75	120	5.5	22	4000
CTS(N、B)-1021	1050×2100	148	165	190	45～88	140	5.5	22	4500
CTS(N、B)-1024	1050×2400	148	165	190	52～100	130	5.5	22	5000	Left-right equation
CTS(N、B)-1030	1050×3000	160	240	280	65～125	200	7.5	22	6200
CTS(N、B)-1218	1200×1800	148	165	190	47～90	140	5.5	19	5800
CTS(N、B)-1224	1200×2400	148	165	190	82～120	192	7.5	19	6200
CTS(N、B)-1230	1200×3000	148	165	190	80～150	240	7.5	19	6200
CTS(N、B)-1530	1500×3000	180	240	300	90～170	270	11	14	8100
CTS(N、B)-1540	1500×4000	180	240	300	115～220	350	11	14	9300
