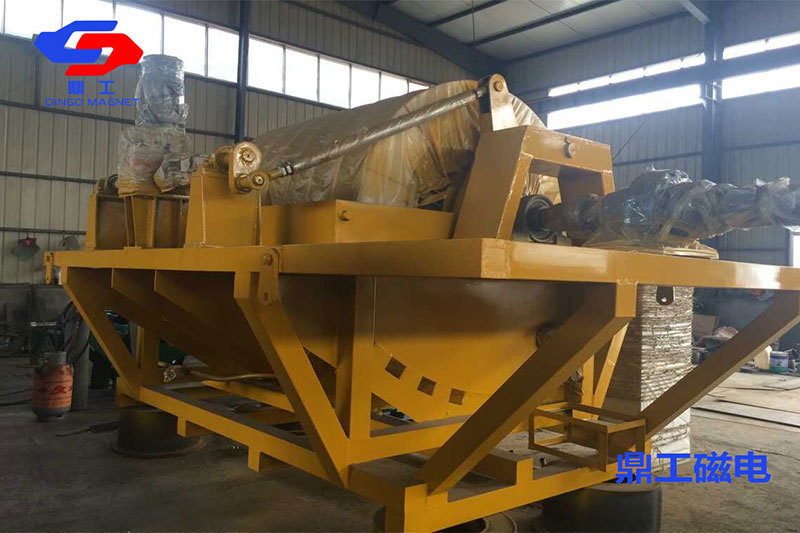

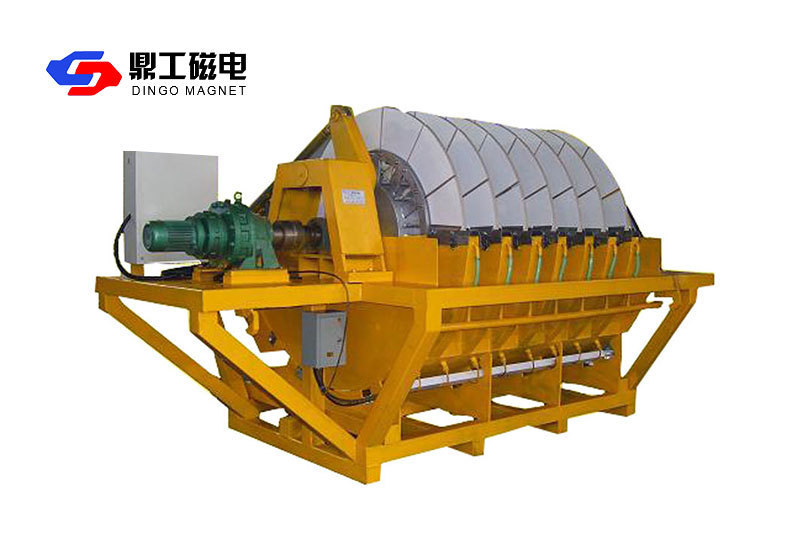

GT series ceramic filter

The GT series ceramic filter is a new generation of efficient and energy-saving solid-liquid separation machinery, with the same basic principle as ordinary disc vacuum filters. The key difference is that it uses a porous ceramic filter plate as the filtering medium. Due to the capillary force, only water can pass through the filter plate during the filtering process, while air cannot pass through.
Applicable scope
It can be widely used for dehydration treatment and filtration of ultrafine materials in industries such as non-ferrous metal mines, coal, chemicals, pesticides, pharmaceuticals, etc.
Main features
This machine also has the characteristics of low moisture content of filter material, less perforation, acid resistance, and corrosion resistance.
Adopting automated operation, low labor intensity, good safety, and clean working environment.
Compared with traditional disc filters, it saves more than 80% energy.
Product parameters

Model	GT-1	GT-4	GT-6	GT-12	GT-15	GT-21	GT-24	GT-30	GT-36	GT-45	GT-60	GT-80	GT-120	GT-150
Filter area （m²）	1	4	6	12	15	21	24	30	36	45	60	80	120	150
Number of disks	1	4	3	6	5	7	8	10	12	9	12	16	20	25
Number of filter plates per plate	12
Filter plate diameter（mm）	1520				1920					2100			2500
Installation power（kw）	9.0	9.3	12.15	16.69	15.45	17.75	20.95	20.95	25.55	27.55	37.5	48.5	48.5	48.5
Average power（kw）	7.16	7.16	9.7	12.65	10.75	13.05	15.55	15.55	17.85	19.85	25.5	38.5	39.5	42.5
Tank volume（m³）	0.21	1.0	1.2	2.2	2.7	4.0	4.5	5.5	7.0	8.5	12.5	16.2	20	24
Weight（kg）	475	750	2000	3500	5000	6800	7500	9000	10000	12000	20100	28000	36000	42000
