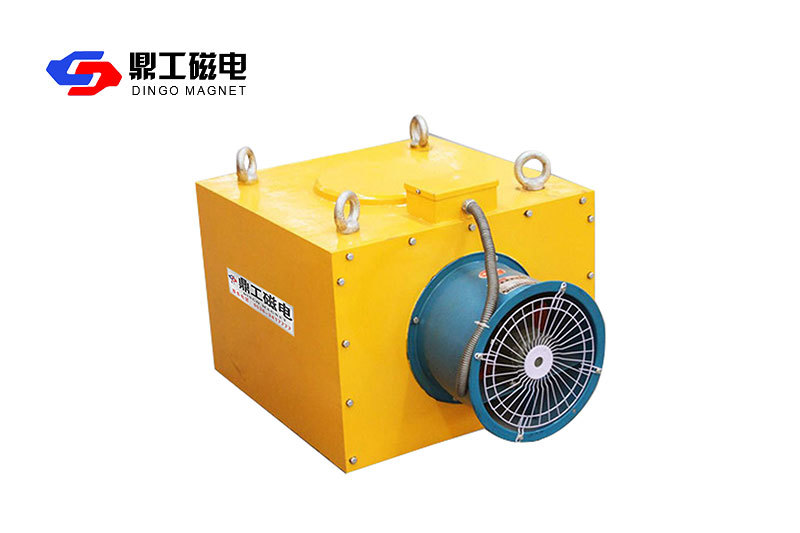

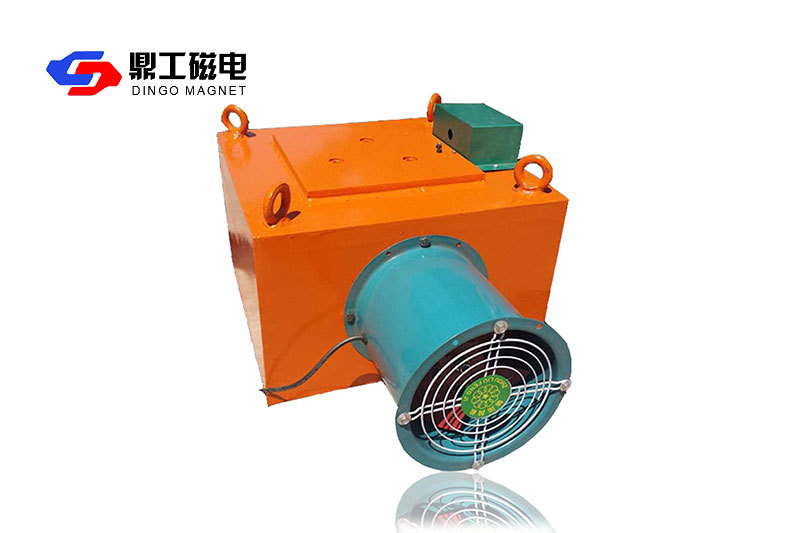

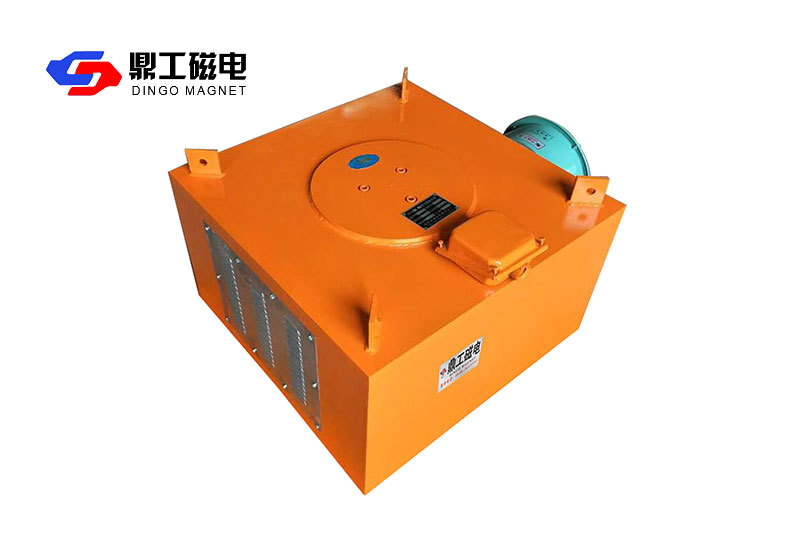

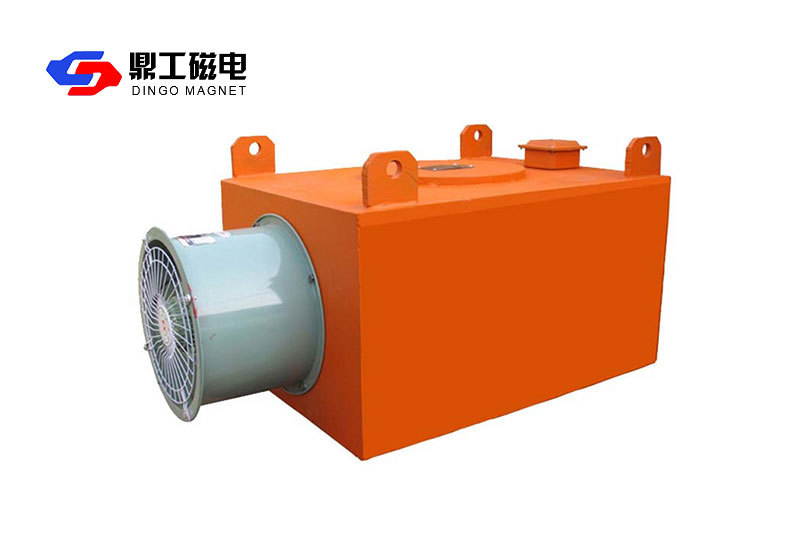

RCDA series air-cooled suspended electromagnetic iron remover

The air-cooled suspended electromagnetic iron remover uses an air conditioning fan for forced air cooling internally, which is characterized by simple operation and convenient use. It is suitable for occasions with good environmental conditions and is used for removing iron from any material in front of the crusher and on the conveyor belt. It provides reliable protection for mechanical equipment such as roller presses, crushers, and vertical mills.
Its main performance indicators meet or exceed the requirements of JB/T7689-2004 standard. This product can remove 0.1-35 kilograms of ferromagnetic substances mixed in non-magnetic materials. Note: When ordering inclined installation, please specify the inclination angle.
Technical characteristics
The magnetic circuit adopts computer simulation design, with large magnetic penetration depth and strong magnetic force.
Special air duct design, axial flow fan forced air cooling, large air volume, high air pressure, fast coil heat dissipation, low temperature rise, and small magnetic field difference between cold and hot states.
The coil undergoes special impregnation insulation and curing treatment technology, which is antioxidant and corrosion-resistant, improving the insulation performance of the entire machine and ensuring long-term continuous operation without aging.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Fan power ≤ kw	Excitation power ≤ kw	Adaptive belt speed ≤ m/s	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Fan power ≤ kw	Excitation power ≤ kw	Adaptive belt speed ≤ m/s	Weight kg	A	B	C	D	E
RCDA-4	400	100	50	70	0.6	0.15	4.5	350	240	300	400	610	240
RCDA-5	500	150	60	90	1	0.15		450	340	430	500	710	340
RCDA-6	600	175	60	120	1.6	0.37		620	500	450	600	910	500
RCDA-6.5	650	200	70	150	2	0.37		750	780	510	710	99	650
RCDA-8	800	250	70	180	4	0.37		980	870	550	810	1080	740
RCDA-10	1000	300	70	230	6	0.45		1330	1250	590	1100	1400	1040
RCDA-12	1200	350	70	280	8	0.45		1950	1400	640	1300	1600	1240
RCDA-14	1400	400	70	330	12	0.8		2870	1560	530	1460	1910	1400
RCDA-16	1600	450	70	380	15	0.8		3800	1760	530	1660	2010	1600
RCDA-18	1800	500	70	430	20	1.3		4500	2000	850	1880	2360	1800
RCDA-20	2000	550	70	470	28	1.3		6900	2200	850	2080	2560	2000
