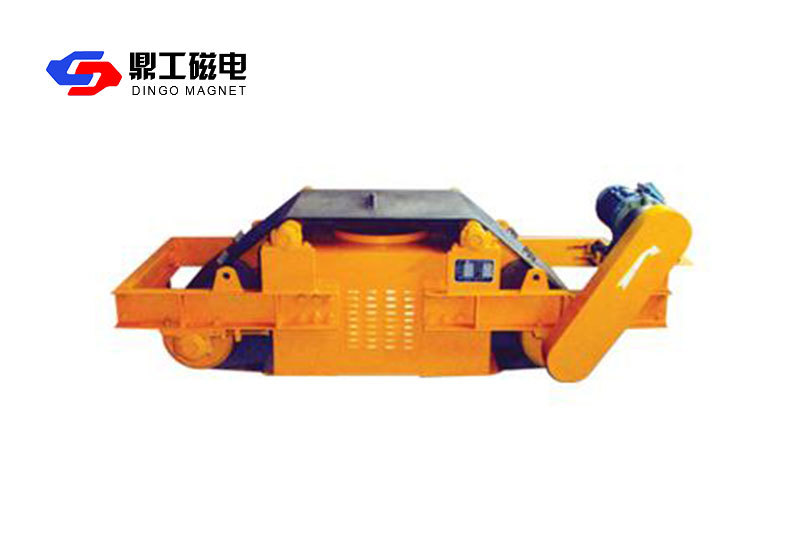

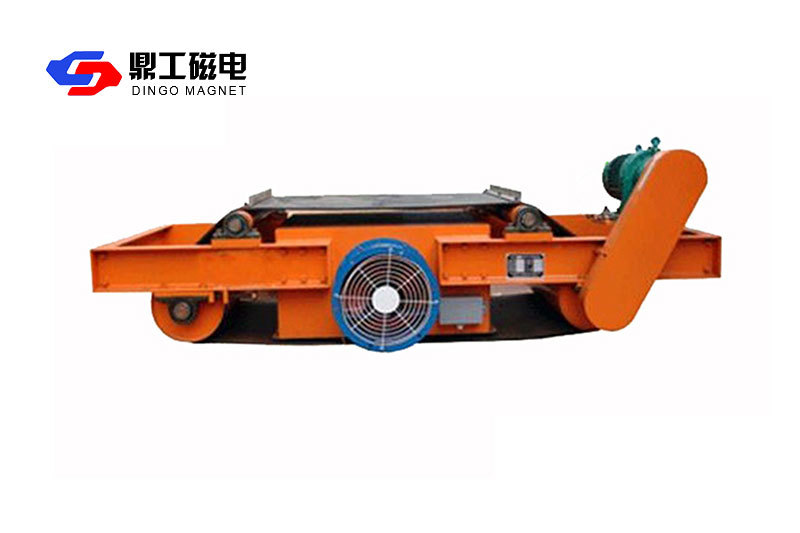

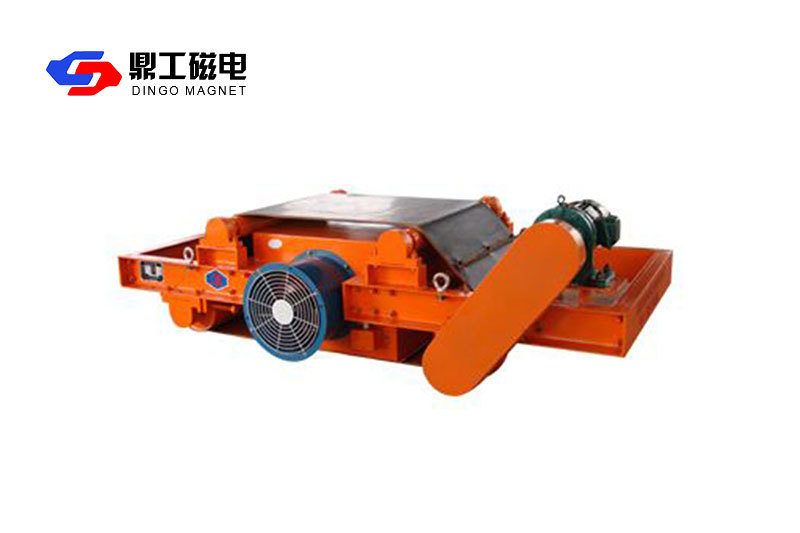

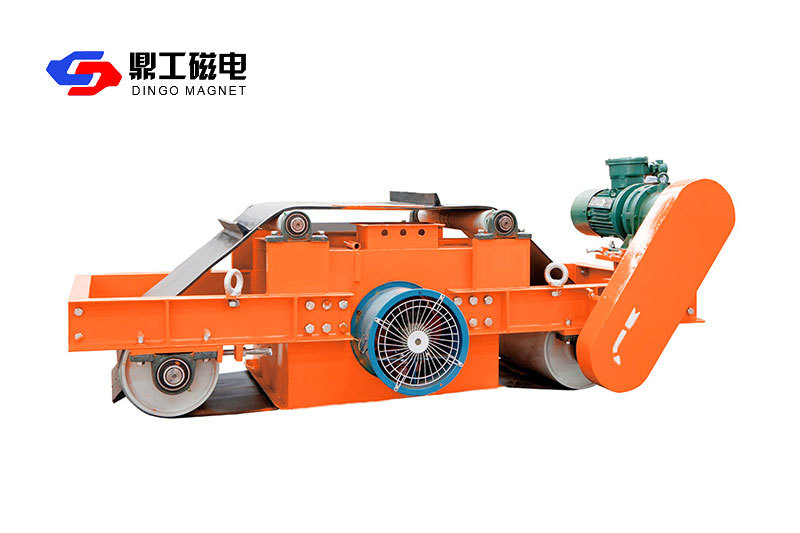

RCDC series air-cooled self dumping electromagnetic iron remover

The RCDC series air-cooled self dumping electromagnetic iron remover is an iron unloading mechanism composed of a driving motor, a drum, and an iron unloading tape with a scraper, which is added to the RCDA series air-cooled suspended electromagnetic iron remover. During the working process, the iron unloading mechanism automatically throws the ferromagnetic substances adsorbed on the iron unloading belt into containers other than the iron remover, eliminating the need for power outage and manual cleaning, achieving automation of iron removal.
Applicable scope
In steel and cement plants, it is often used for slag iron removal and protection of important equipment such as roller presses, vertical mills, and crushers.
Technical characteristics
The magnetic circuit adopts computer simulation design, with large magnetic penetration depth and strong magnetic force.
Special air duct design, axial flow fan forced air cooling, large air volume, high air pressure, fast coil heat dissipation, low temperature rise, and small magnetic field difference between cold and hot states.
The coil adopts advanced impregnation insulation and curing treatment technology to protect the coil from dust and harmful gas erosion, improve the insulation performance of the entire machine, and ensure long-term continuous operation without aging.
Automatic iron unloading, easy maintenance, drum waist drum structure, with automatic belt deviation correction function, specially designed fully sealed bearing seat, can achieve long-term trouble-free operation.
The product has good compatibility, complete rectification equipment functions, manual and centralized control functions, and can meet various usage requirements.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Drive power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height h mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ Kw	Drive power ≤ Kw	Adaptive belt speed ≤ m/s	Weight kg	A	B	C	D	E
RCDC-5	500	150	60	100	1.2	1.5	2.5	1080	2060	965	720	770	455
RCDC-6	600	175	60	120	2	1.5		1350	2160	1170	810	1070	575
RCDC-6.5	650	200	70	150	3	2.2		1530	2380	1370	820	888	650
RCDC-8	800	250	70	200	4	2.2		2100	2340	1420	860	923	800
RCDC-10	1000	300	70	250	6	3.0		3380	2810	1700	880	1180	1450
RCDC-12	1200	350	70	300	8	4.0		4150	3000	1850	850	1650	1500
RCDC-14	1400	400	70	350	12	4.0		5500	3280	2070	1020	1600	1410
RCDC-16	1600	450	70	400	15	5.5		6900	3600	2270	1050	1800	1500
RCDC-18	1800	500	70	450	20	7.5		8800	4280	2500	1160	2220	2850
RCDC-20	2000	550	70	500	26	7.5		10500	4600	2750	1300	2470	3100
RCDC-22	2200	600	70	550	32	7.5		12900	5100	3100	1600	2800	3450
