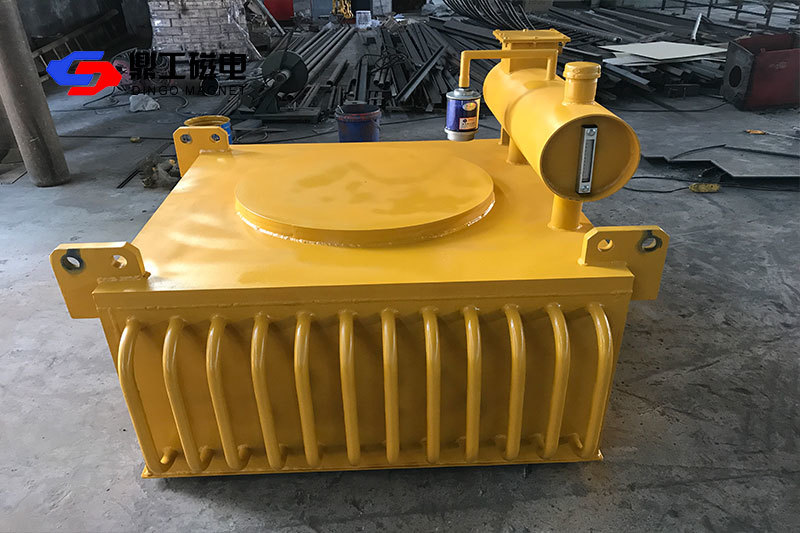

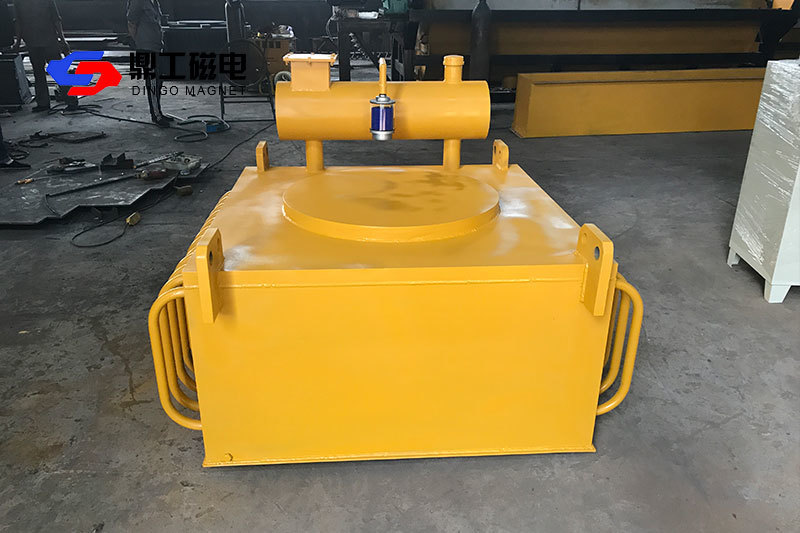

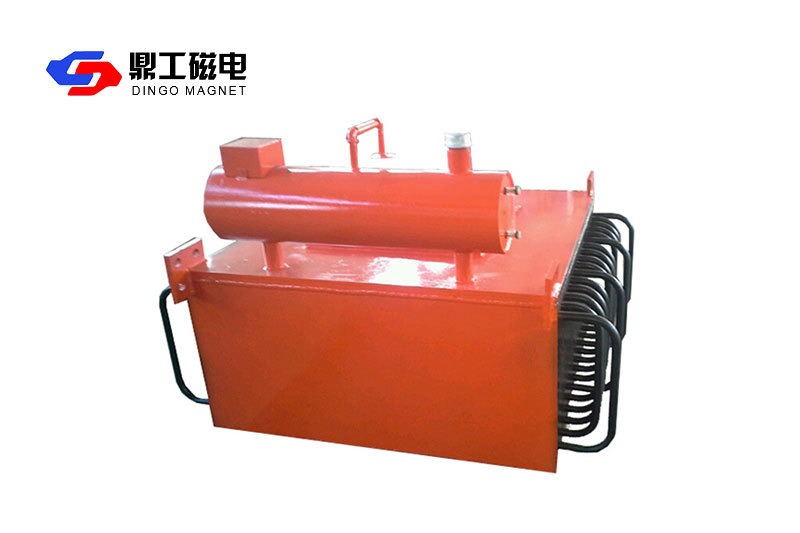

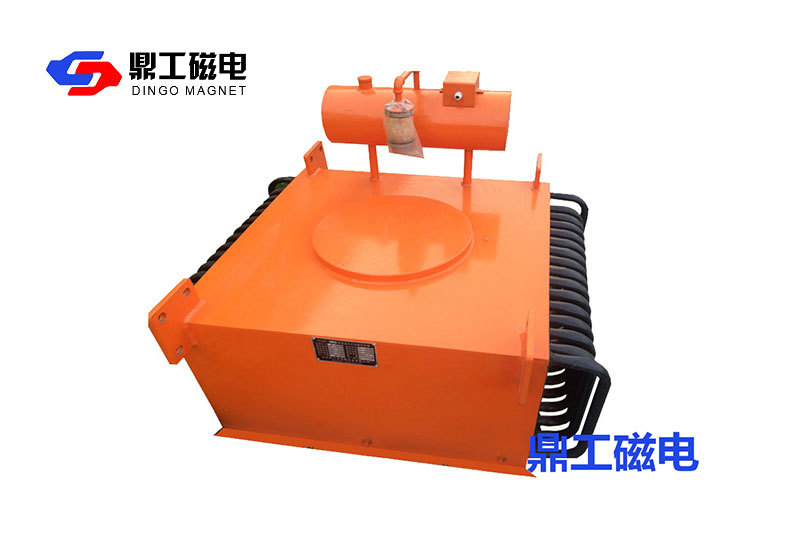

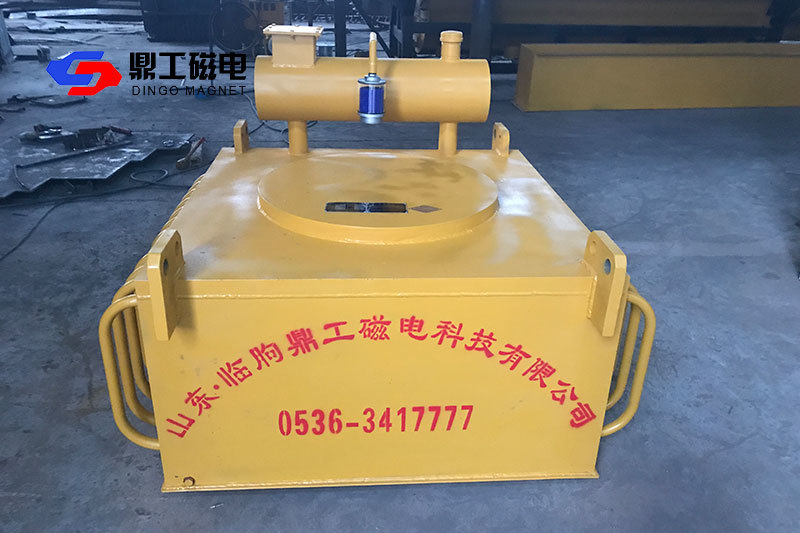

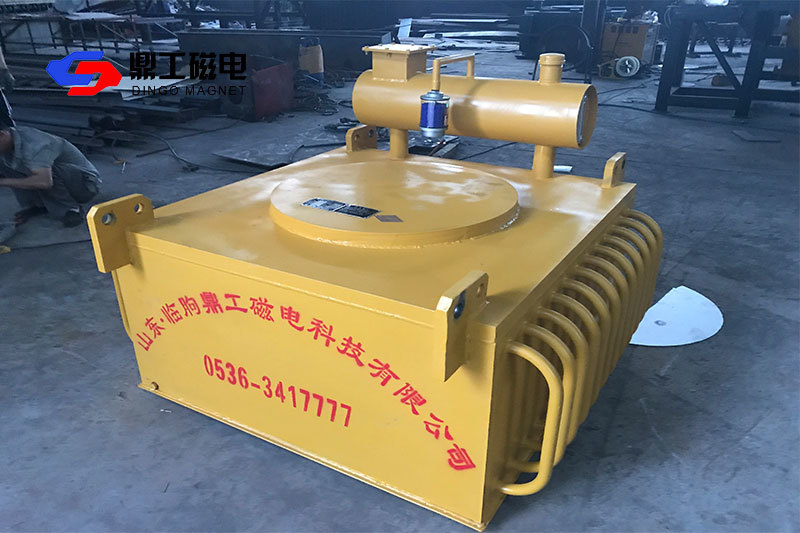

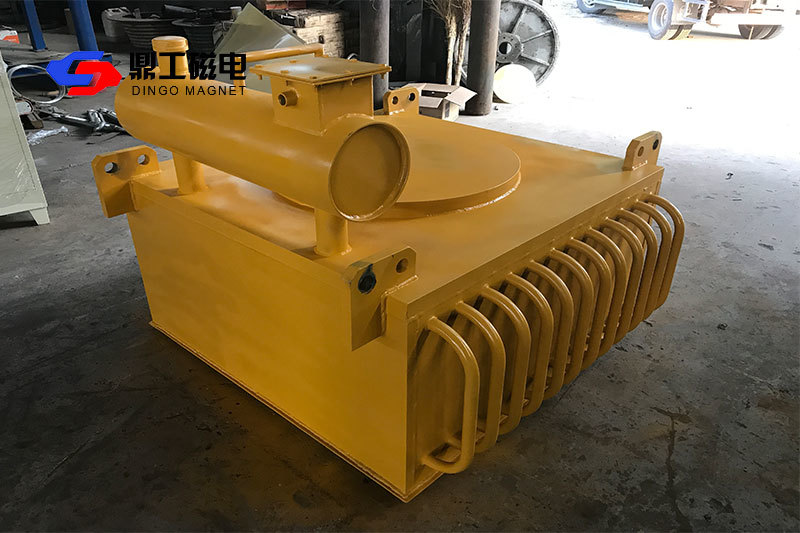

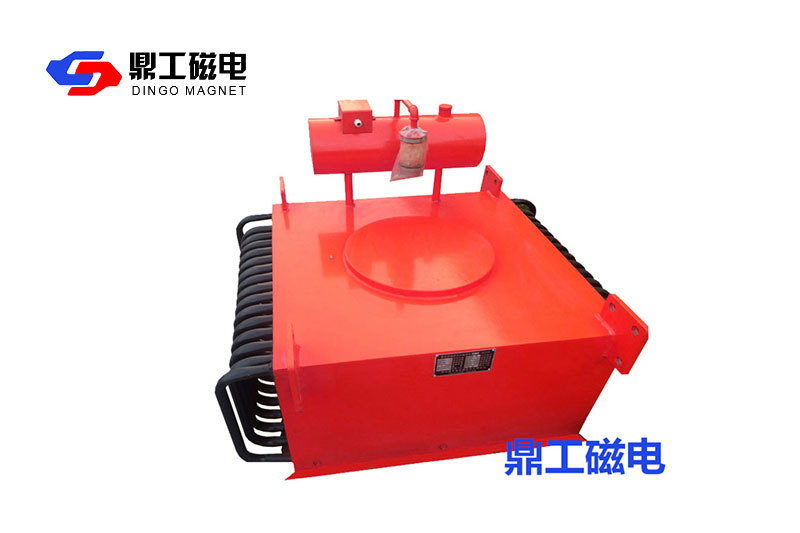

RCDEZ series oil immersed self cooling electromagnetic iron remover

Applicable scope
Suitable for large thermal power plants, coal handling ports, coal mines, mines, building materials and other places with high requirements for iron removal, it can work normally in harsh environments such as dust, humidity, and severe salt spray corrosion at the seaside. It is the most commonly used cooling method for electromagnetic iron removers internationally.
Technical characteristics
The magnetic circuit adopts computer simulation design, with large magnetic penetration depth and strong magnetic force.
The excitation coil is specially designed with longitudinal and transverse oil channels, which is very conducive to heat transfer to transformer oil, effectively reducing the temperature of the coil. The working temperature rise of the coil is less than 70 ° C, reaching the level of similar products abroad.
The coil insulation is of Class F or above, and a new type of high-temperature heat transfer oil is selected. The oil circuit design is reasonable, smooth and unobstructed, with fast circulation and high heat dissipation efficiency.
The coil is soaked and cured with a specially designed epoxy resin, which improves the insulation performance of the entire machine. The fully sealed structure is dustproof, rainproof, smoke proof, and corrosion-resistant.
Corrugated heat dissipation fins greatly increase the heat dissipation area and effectively control temperature rise.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated height hmm	Magnetic field strength mT	Adaptive belt speed ≤ m/s	Material thickness mm	Excitation power ≤ kw	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated height hmm	Magnetic field strength mT	Adaptive belt speed ≤ m/s	Material thickness mm	Excitation power ≤ kw	Weight kg	A	B	C	D	E	F
RCDE-6	650	175	60	4.5	125	1.5	650	775	835	580	450	530	600
RCDE-6.5	650	200	70		150	2.0	750	795	835	590	440	550	650
RCDE-8	800	250	70		200	3	1150	1050	980	770	620	670	835
RCDE-10	1000	300	70		250	4.5	1400	1400	1160	940	800	755	1000
RCDE-12	1200	350	70		300	6	2780	1460	1190	1260	1070	730	1290
RCDE-14	1400	400	70		350	8.5	4200	1700	1280	1500	1340	800	1560
RCDE-16	1600	450	70		400	12.5	5700	1950	1370	1850	1630	860	1850
RCDE-18	1800	500	70		450	18	7300	2170	1490	2050	1880	950	2000
