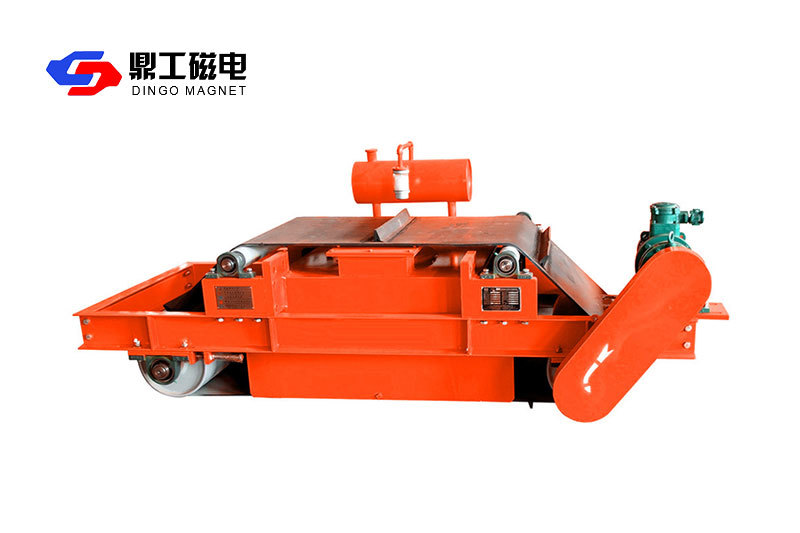

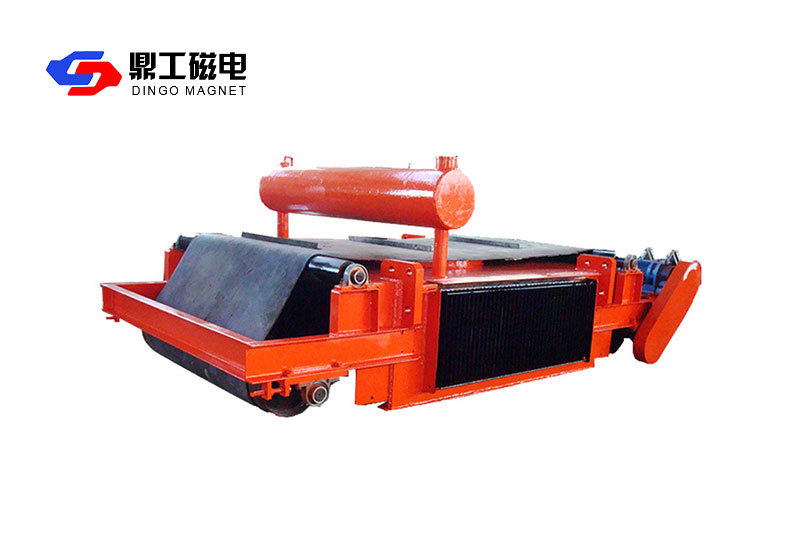

RCDF series oil cooled self dumping electromagnetic iron remover

Suitable for places with particularly high requirements for iron removal such as coal handling ports, large thermal power plants, coal mines, etc. Used for hanging over large conveyor belts, it plays an important role in removing impurities and improving material quality. It can work normally in harsh environments such as dust, humidity, and salt spray corrosion.

Category：

Iron Remover Series

Keywords：

Tel：

+86-536-3417777

Email：

dinggongcidian@163.com

Related Products

Consult

RCDF series oil cooled self dumping electromagnetic iron remover

Applicable scope
Suitable for places with particularly high requirements for iron removal such as coal handling ports, large thermal power plants, coal mines, etc. Used for hanging over large conveyor belts, it plays an important role in removing impurities and improving material quality. It can work normally in harsh environments such as dust, humidity, and salt spray corrosion.
Technical characteristics
1. The forced oil circulation cooling technology widely used domestically and internationally for large and medium-sized transformers has extremely low temperature rise (≤ 50 ℃), and the cooling technology is mature, safe, and reliable.
2. The iron core is made of oriented cold-rolled silicon steel sheets with high magnetic conductivity and high saturation magnetic induction strength. The permeability is much higher than that of ordinary pure iron materials, reducing hysteresis loss and improving the stability of the total magnetic field.
3. The iron remover has short magnetic circuit, low magnetic loss, large magnetic field gradient, strong iron removal ability, and high iron removal rate.
4. The iron remover is lightweight, compact in structure, and has excellent heat dissipation effect.
5. The excitation coil is fully immersed in transformer oil with advanced impregnation and curing technology, which has excellent moisture-proof, dust-proof and anti-corrosion performance and greatly improves the service life of the coil.
6. The excitation coil is made into a three-dimensional winding, with a large heat dissipation area, smooth and reasonable oil circuit, and extremely low temperature rise (≤ 50 ℃).
7. Automatic iron unloading, easy maintenance, drum waist.
Product parameters

Project/Parameter/Model	Adaptive bandwidth ≤ mm	Rated lifting height h mm	Material thickness ≤ mm	Excitation power ≤ KW	Drive power ≤ KW	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth ≤ mm	Rated lifting height h mm	Material thickness ≤ mm	Excitation power ≤ KW	Drive power ≤ KW	Weight kg	A	B	C	D	E
RCDF-5	500	150	100	1.2	1.5	1100	1900	900	800	650	1050
RCDF-6	600	175	130	1.8	2.2	1500	2100	1000	850	700	1170
RCDF-6.5	650	200	150	2	2.2	1800	2200	1050	900	750	1270
RCDF-8	800	250	200	3.3	3	2500	2350	1150	970	810	1420
RCDF-10	1000	300	250	4.5	3	3550	3000	1500	1080	810	1580
RCDF-12	1200	350	300	6.7	4	4650	3250	1400	1200	940	1780
RCDF-14	1400	400	350	8.7	4	6290	3550	1945	1300	940	1950
