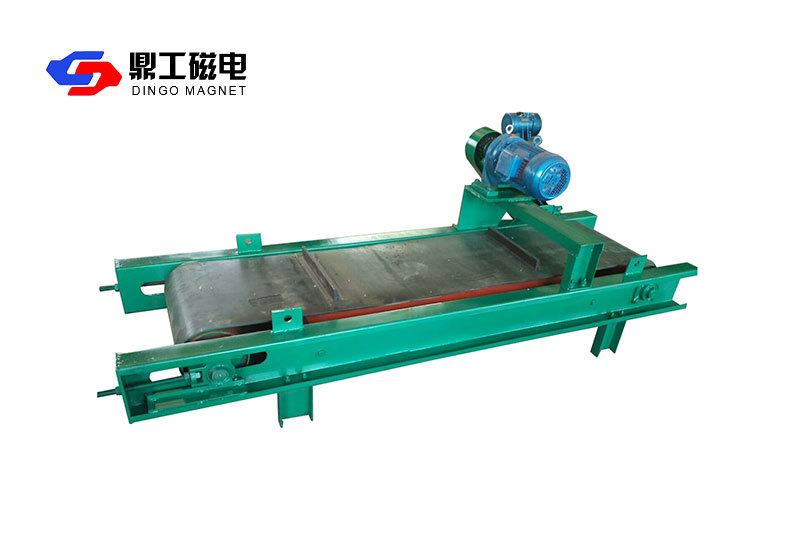

RCYQ series lightweight permanent magnetic tape iron remover

The RCYQ series lightweight permanent magnet self dumping iron remover, also known as the RCYW series non roller permanent magnet self dumping iron remover, is different from other permanent magnet iron removers driven by rollers. It drives the motor to drive the belt with iron unloading scraper and other circular iron unloading movements through chains and sprockets.
Applicable scope
Widely used in industries such as building materials, wood industry, environmental protection, mining, chemical industry, casting, grain, light industry, etc.
Technical characteristics
The entire machine has a compact structure, small size, fewer components, and is easy to manage for lifting. It is economical and practical, and can work in narrow spaces.
The overall size is small and can be called a lightweight permanent magnet self dumping iron remover, with a length and height of C-type; 70%、80%
The composite magnetic material composed of ferrite and neodymium iron boron permanent magnet has high magnetic field strength, strong suction, and is not easy to demagnetize.
Low noise, the belt has automatic deviation function, and can continuously absorb and unload iron.
Lightweight, averaging less than 75% of the weight of the C-type.
Adopting fully sealed bearing seats to adapt to harsh environments.
No excitation coil or cooling system required, low energy consumption.
Simple structure, minimal maintenance, ensuring long-term trouble-free operation.
The control part can be interlocked with the belt conveyor to achieve both on-site manual control and centralized control.
Product parameters

Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height ≤ mm	Magnetic field strength ≥ mT	Adaptive belt speed ≤ m/s	Iron absorption capacity kg	Working system	Drive power kw	Weight kg	External dimensions mm
Project/Parameter/Model	Adaptive bandwidth mm	Rated lifting height ≤ mm	Magnetic field strength ≥ mT	Adaptive belt speed ≤ m/s	Iron absorption capacity kg	Working system	Drive power kw	Weight kg	A	B	C	D	E	F
RCYQ-4	400	100	≥40	≤2.0	0.1-5	Continuation	0.75	380	1270	840	540	1050	580	270
RCYQ-5	500	150	≥50	≤2.5			0.75	490	1322	1006	615	622	672	270
RCYQ-6.5	650	200	≥50	≤2.5			1.10	640	1545	1150	710	1300	830	270
RCYQ-8	800	250	≥60	≤3.5	0.1-10		1.10	850	1712	1385	735	972	1022	270
RCYQ-10	1000	300	≥60	≤4.0			2.20	1300	1915	1535	735	1500	1298	270
RCYQ-12	1200	350	≥60	≤4.0			2.20	1650	2115	1540	790	1780	1298	270
