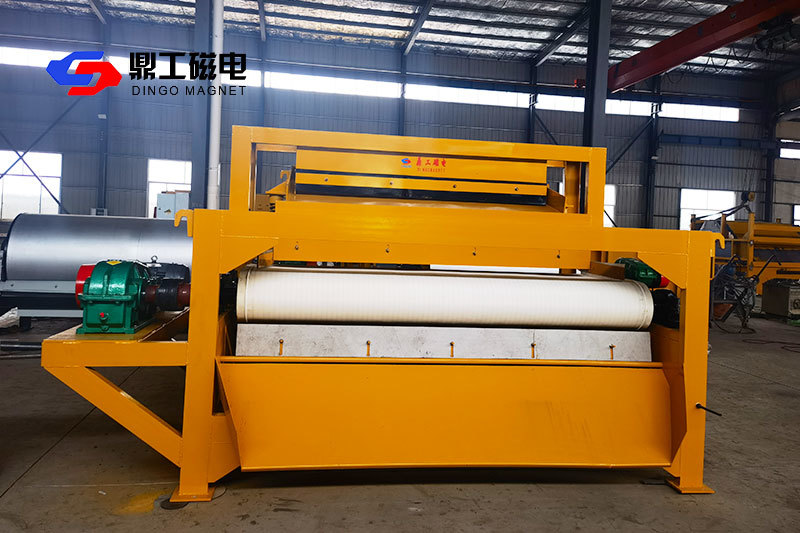

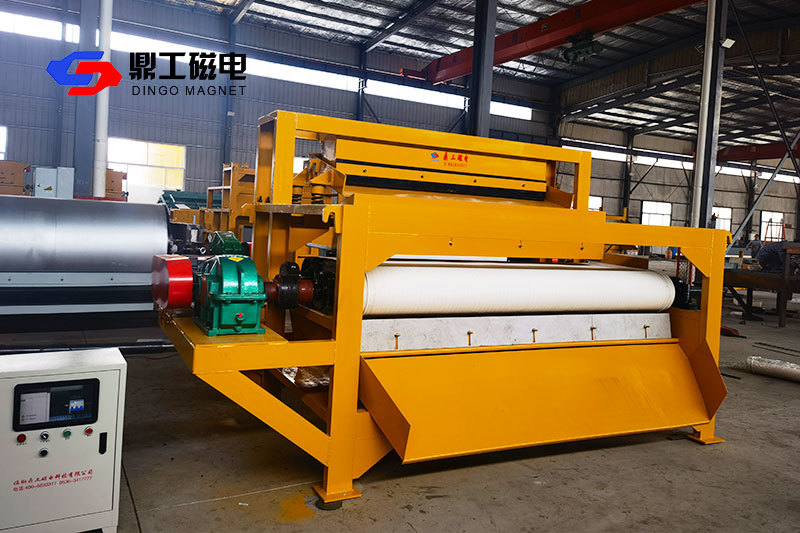

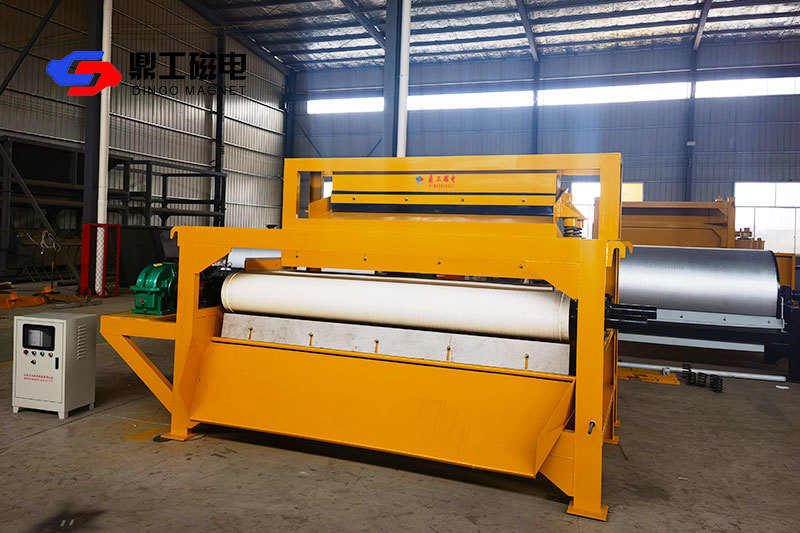

GCTL type dry strong magnetic separator

All magnetic materials in the magnetic system are made of high-quality Ru iron boron, which has the characteristics of high magnetic energy product, strong coercivity, and high magnetic flux density. The effective sorting surface has high magnetic induction intensity.

Category：

Magnetic Separator Series

Keywords：

Tel：

+86-536-3417777

Email：

dinggongcidian@163.com

Related Products

Consult

GCTL type dry strong magnetic separator

Applicable scope
1. hematite (including specularite). General strong magnetic dry separation of limonite, siderite, manganese ore, garnet ore and chromite.
2. It is used for general strong magnetic iron removal of non-metallic ores such as feldspar quartz sand.
3. Purification and reuse of chromite ore for casting.
Product advantages
1. All magnetic materials in the magnetic system are made of high-quality Ru iron boron, which has the characteristics of high magnetic energy product, strong coercive force, and high magnetic flux density, effectively separating surfaces with high magnetic induction intensity.
2. Using high-quality magnetic conductive materials as the magnetic medium and adopting a multi-layer induction pole design, it has a high gradient and is suitable for the beneficiation of fine-grained and fine-grained minerals.
3. The effective working area is large, and the length of the sorting belt is increased compared to traditional models with small diameters, ensuring the recovery rate of weakly magnetic minerals while being suitable for the beneficiation of coarse minerals.
4. An efficient ore unloading device can effectively avoid the adsorption and accumulation of small amounts of strong magnetic minerals in the working area, making it suitable for beneficiation of ores containing small amounts of strong magnetic minerals.
Product parameters

Equipment model	Magnetic roller diameter (mm)	Magnetic roller length (mm)	Feed particle size (mm)	Magnetic induction intensity on the surface of the magnetic roller (Gs)	Hourly processing capacity (t)	Speed (r/min)	Motor power (Kw)	External dimensions (m)	Machine weight (Kg)
GCTL-II-0510	500	1000	5-0	Peak P16500 Average 15000	6~12	Adjustable	4	3060×2000×3000	2800
GCTL-II-0520	500	2000	5-0		11~29		5.5	3060×2000×3000	4700
GCTL-II-0530	500	3000	5-0		16~35		7.5	4060×2000×3000	6600
GCTL-II-0610	600	1000	5-0		7~14		4	3060×2000×3000	3300
GCTL-II-0620	600	2000	5-0		13~27		5.5	3060×2000×3000	5400
GCTL-II-0630	600	3000	5-0		19~42		7.5	4060×2000×3000	7500
GCTL-II-0710	700	1000	5-0		8~17		4	3060×2000×3000	3900
GCTL-II-0720	700	2000	5-0		15~32		7.5	3060×2000×3000	6100
GCTL-II-0730	700	3000	5-0		23~49		7.5	4060×2000×3000	8300
GCTL-II-0810	800	1000	6-0		9~19		5.5	3060×2250×3150	4700
GCTL-II-0820	800	2000	6-0		17~36		7.5	3060×2250×3150	7000
GCTL-II-0830	800	3000	6-0		26~56		11	4060×2250×3150	9400
