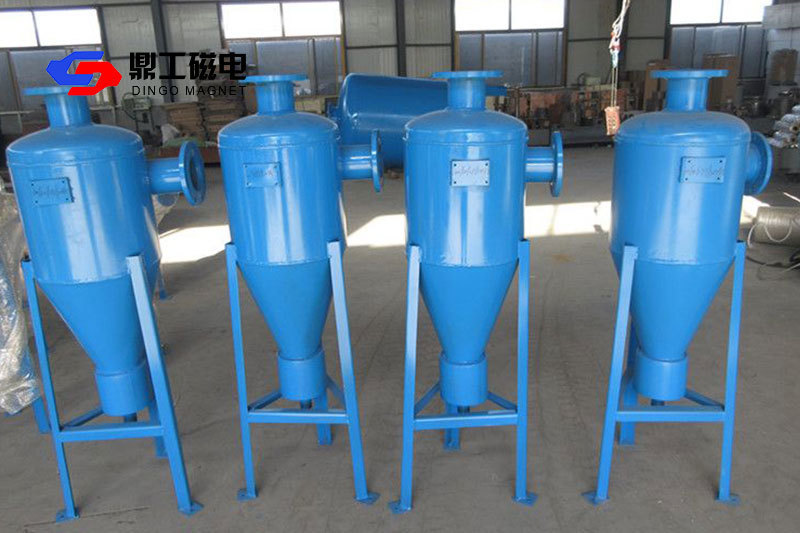

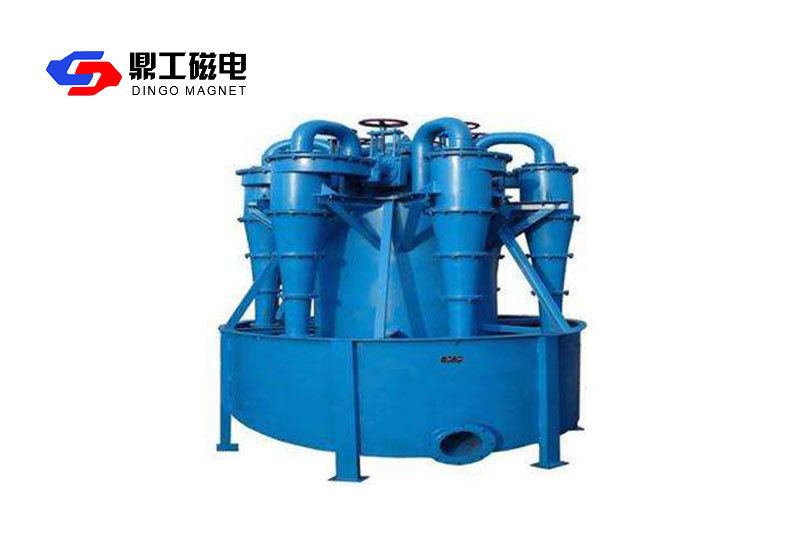

FXJ Series Hydrocyclone

A hydrocyclone is a device used to separate and remove heavy coarse particles such as mud and sand from sewage. It is sometimes used for mud dewatering and is divided into two types: pressure type and gravity type. It is often made of circular main structures or metal pipes. Water enters from the upper part of the structure (or metal pipe) along the tangent line by pressure or gravity. Under the action of centrifugal force, coarse and heavy particulate matter is thrown towards the wall and rotated downwards to discharge together with the formed thick liquid. Smaller particulate matter is rotated to a certain extent and then discharged with a secondary upward vortex.
Technical characteristics
Involute feeding reduces turbulence and underflow, facilitating the formation of laminar flow.
High classification efficiency and high classification accuracy.
The use of advanced wear-resistant composite materials effectively improves the service life of the product.
High cost-effectiveness and strong processing power.
Simple processing technology and convenient management.
Long service life.
Scope of application
Widely used in the beneficiation process of black metal, non-ferrous metal, and non-metallic tailings, as well as in the closed circuit grinding and classification, open circuit classification, and other operations of metal mines such as iron ore, copper mine, gold mine, nickel mine, etc.
Product parameters

Specification and model	Diameter mm	Feed port diameter mm	Cone angle α °	Overflow port diameter mm	Discharge port diameter mm	Feed pressure MPa	Separation particle size μm	Feed particle size mm	Processing capacity m³/h	Long overall dimensions×wide×Height mm
FXJ-75	75	15×9（φ13）	15	17	6 7 8 10	0.05~0.4	20~60	0.6	3	167.5×145.5×420
FXJ-75-II	75	9×9（φ10）	7	20	5 6 7 8	0.05~0.5	5~40	0.6	3	218×184×778
FXJ-100	100	26×16（φ23）	20	40	8 10 12 14	0.05~0.3	20~60	1	10	215.5×134×522
FXJ-100-II	100	26×16（φ23）	20	40	8 10 12 14	0.05~0.3	20~60	1	10	215.5×134×522
FXJ-125	125	φ26	17	40	12 14 16 18	0.05~0.3	25~74	1	13	202.5×165×609
FXJ-150	150	30×26（φ31.5）	20	40	16 18 20 22	0.05~0.3	30~100	1.5	15	280×278×712
FXJ-150-II	150	40×25（φ36）	15	15 25	16 18 20	0.05~0.3	20~74	1.5	16	281×325×923
FXJ-200	200	60×30（φ48）	20	65	16 20 24 28	0.05~0.3	40~100	2	35	358×310×964
FXJ-250	250	95×50（φ78）	19	80 85 106	15 20 25 30 35	0.03~0.3	40~100	3	70	560×375.5×1220
FXJ-250-II	250	70×35（φ56）	20	60	28	0.03~0.3	40~100	3	40	515×475×1390
FXJ-300	300	φ64	20	120 135	20 25 30 35 40 45	0.03~0.3	40~110	4.5	70	570×458×1160
FXJ-300-II	300	φ64	30	136	40	0.03~0.3	40~110	4.5	85	534×438×834
FXJ-350	350	φ80	19	95 115	30 35 40 45 50 60 70	0.03~0.3	50~120	7	90	544×480×480
FXJ-350-PU	350	80×65（φ80）	20	105 115 125	45 50 60 70 80	0.03~0.3	50~120	7	90	680×565×2112
FXJ-500	500	120×90（φ117）	20	130 160	50 60 65 70 75 80	0.03~0.3	75~150	10	175	652
